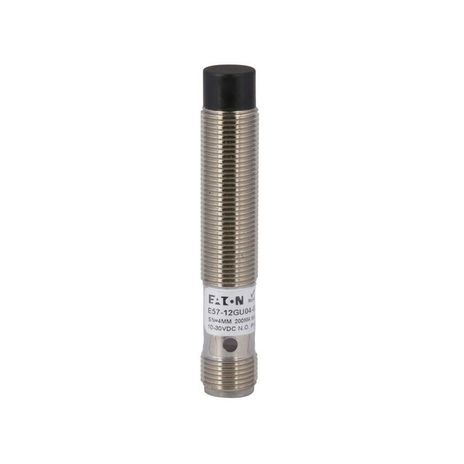

Eaton E57-12GU04-GDB

Name: Eaton E57-12GU04-GDB
Brand: Eaton
SKU: CS1784200
Price: 96.46 USD
Availability: OutOfStock

SKU: CS1784200MPN: E57-12GU04-GDBUPC/EAN: 782114665053

Eaton E57 inductive proximity sensor

Eaton E57-12GU04-D1, E57-12GU04-D1DB, E57-12GU04-D1S5, E57-12GU04-D3, E57-12GU04-D4, E57-12GU04-D6, E57-12GU04-D9, E57-12GU04-DDB, E57-12GU04-G, E57-12GU04-GDB

Product Details

Inductive Global Proximity Sensor, E57, 4 mm range, Straight, 12 mm, Unshielded, Output ON, M12, 3-wire, 100 mA at 10-30 Vdc, 4 pin, \<1.0% sensing range, PNP open collector, NO, 10-30 Vdc

Attributes

Accuracy	< 1.0% sensing range
Actuator Function	Unshielded
Connection	M12
Contact Configuration	PNP open collector, NO
Contact Rating	100 mA at 10-30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output ON
Maximum Dc Current	100 mA
Number Of Pins	4.0000
Number Of Wires	3
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit
Series	E57
Type	Inductive Global Proximity Sensor
