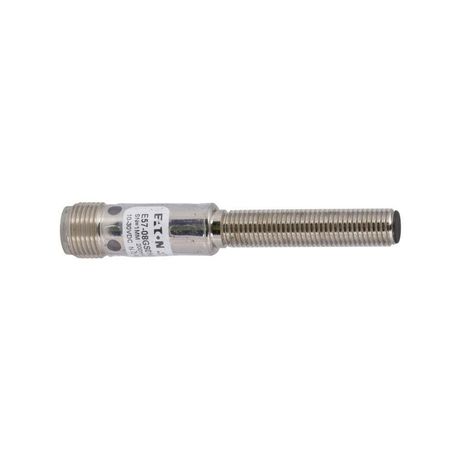

Eaton E57-08GS01-GDB

Name: Eaton E57-08GS01-GDB
Brand: Eaton
SKU: CS111
Price: 121.49 USD
Availability: OutOfStock

SKU: CS111MPN: E57-08GS01-GDBUPC/EAN: 782114664971

Eaton E57 inductive proximity sensor

Eaton E57-08GS01-CDB, E57-08GS01-CNB, E57-08GS01-D, E57-08GS01-DDB, E57-08GS01-G, E57-08GS01-G1, E57-08GS01-G1DB, E57-08GS01-G1NB, E57-08GS01-GDB, E57-08GS01-GNB

Product Details

Inductive Global Proximity Sensor, E57, 1 mm range, Straight, 8 mm, Shielded, Output ON, M12, 3-wire, 100 mA at 10-30 Vdc, 4 pin, \<1.0% sensing range, PNP open collector, NO, 10-30 Vdc

Attributes

Accuracy	< 1.0% sensing range
Actuator Function	Shielded
Connection	M12
Contact Configuration	PNP open collector, NO
Contact Rating	100 mA at 10-30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output ON
Maximum Dc Current	100 mA
Number Of Pins	4.0000
Number Of Wires	3
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit
Series	E57
Type	Inductive Global Proximity Sensor
