Eaton DG1-34046FB-C21C

Name: Eaton DG1-34046FB-C21C
Brand: Eaton
SKU: CS4848319
Price: 5545.81 USD
Availability: OutOfStock

SKU: CS4848319MPN: DG1-34046FB-C21CAlternate Part #: 9702-3006-00PUPC/EAN: 786685878775

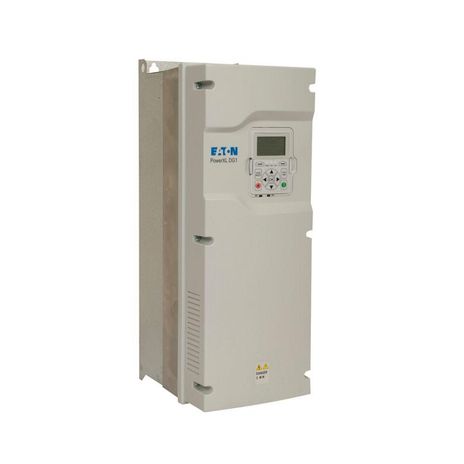

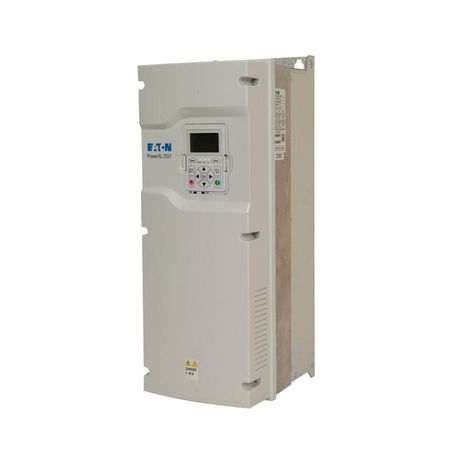

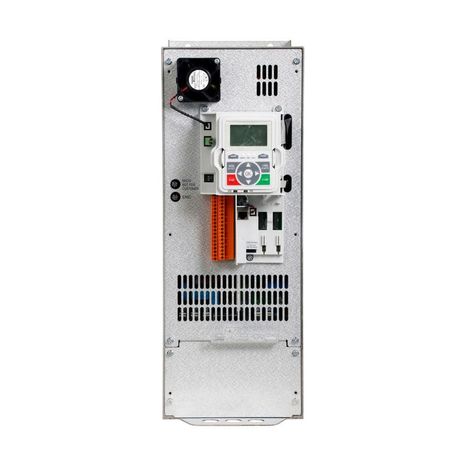

Eaton PowerXL DG1 variable frequency drive

Eaton DG1-32031FB-C21C, DG1-32031FB-C54C, DG1-32048FB-C21C, DG1-32048FB-C54C, DG1-34031FB-C54C, DG1-34038FB-C21C, DG1-34038FB-C54C, DG1-34046FB-C21C, DG1-34046FB-C54C

Product Details

Eaton PowerXL DG1 variable frequency drive, 380-500V input 22 kW 30 Hp CT 3PH 50/60 Hz 46A output IP21/type 1 FR4 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots Brake chopper

Attributes

Brake Chopper	Brake chopper
Communication	EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU communication
Communications Onboard	EtherNet/IP, Modbus TCP, RS-485: Modbus RTU, BACnet MS/TP
Conformal Coated Boards	Yes
Display	LCD graphical
Electromagnetic Compatibility Filter	EMC Filter
Enclosure	IP21/type 1
Frame Size	4
Frequency Rating	50-60 Hz
High Overload Ct Amps	46 A
High Overload Ct Hp	30 hp
High Overload Ct Kw	22 kW
Horsepower	30 hp
Input Frequency Range	50 - 60 Hz
Input Output	400 Vac (380-500 Vac)
Input Voltage	400 V, 380-500 V(-15%, +10%)
Input Voltage Range	380 - 500 V
Internal Dc Choke	Yes
Keypad	Included
Low Overload Vt Amps	61 A
Low Overload Vt Hp	40 HP
Low Overload Vt Kw	30 kW
Material	Coated board
Max Overload	110% for 1 minute
Motor Control Modes	Frequency, Speed, Open-loop speed, Open-loop torque
Motor Type	Inductio, PM (IPM & SPM)
Number Of Slots	2 expansion slots
Output Current Max	46 A
Output Frequency Range	0 - 400 Hz
Phase	Three-phase in, three-phase out
Power Consumption	22 kW
Protection	Internal EMC filter, DC choke
Recommended Fuse Size	80
Series	General purpose
Software	Active energy control, quick start wizard
Torque Rating	CT
User Interface	Graphical Keypad
