Eaton DG1-34061FB-C21C

Name: Eaton DG1-34061FB-C21C
Brand: Eaton
SKU: CS4848321
Price: 7511.71 USD
Availability: OutOfStock

SKU: CS4848321MPN: DG1-34061FB-C21CAlternate Part #: 9702-4003-00PUPC/EAN: 786685887722

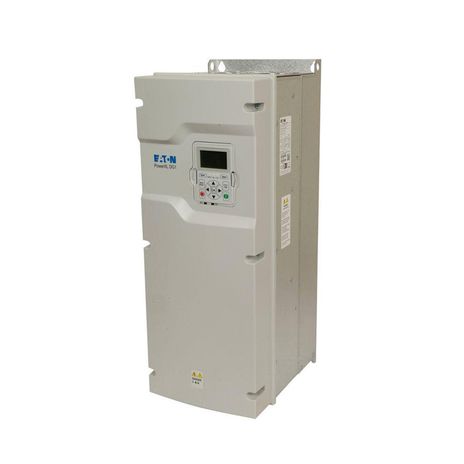

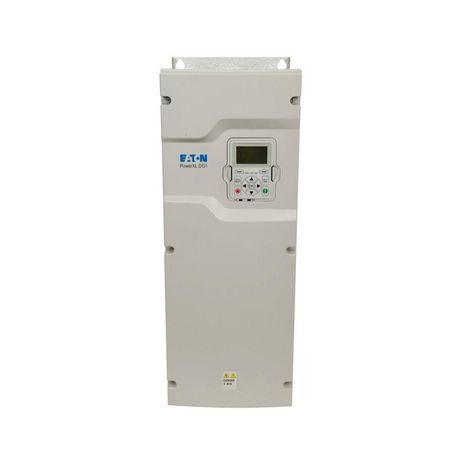

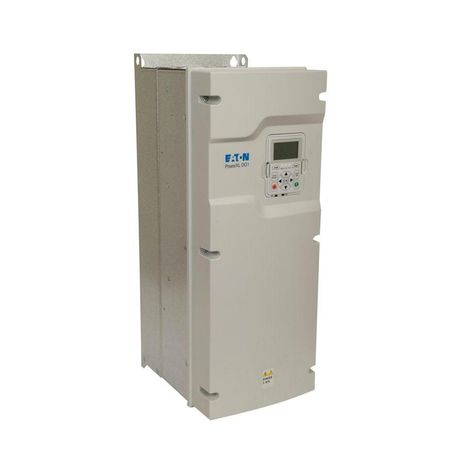

Eaton PowerXL DG1 variable frequency drive

Eaton DG1-32061FB-C21C, DG1-32061FB-C54C, DG1-32061FN-C21C, DG1-32061FN-C54C, DG1-32075FB-C21C, DG1-32075FB-C54C, DG1-32075FN-C21C, DG1-32075FN-C54C, DG1-32088FB-C21C, DG1-32088FB-C54C, DG1-32088FN-C21C, DG1-32088FN-C54C, DG1-34061FB-C21C, DG1-34061FB-C54C, DG1-34061FN-C21C

Product Details

Eaton PowerXL DG1 variable frequency drive, 380-500V input 30 kW 40 Hp CT 3PH 50/60 Hz 61A IP21/type 1 enclosure FR4 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots Brake chopper

Attributes

Brake Chopper	Brake chopper
Communication	EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU communication
Communications Onboard	EtherNet/IP, Modbus TCP, RS-485: Modbus RTU, BACnet MS/TP
Conformal Coated Boards	Yes
Display	LCD graphical
Electromagnetic Compatibility Filter	EMC Filter
Enclosure	IP21/type 1
Frame Size	4
Frequency Rating	50-60 Hz
High Overload Ct Amps	61 A
High Overload Ct Hp	40 hp
High Overload Ct Kw	30 kW
Horsepower	40 hp
Input Frequency Range	50 - 60 Hz
Input Voltage	400 V, 380-500 V(-15%, +10%)
Input Voltage Range	380 - 500 V
Internal Dc Choke	Yes
Keypad	Included
Low Overload Vt Amps	72 A
Low Overload Vt Hp	50 hp
Low Overload Vt Kw	37 kW
Material	Coated board
Max Overload	110% for 1 minute
Motor Control Modes	Frequency, Speed, Open-loop speed, Open-loop torque
Motor Type	Inductio, PM (IPM & SPM)
Number Of Slots	2 expansion slots
Output Current Max	61 A
Output Frequency Range	0 - 400 Hz
Phase	Three-phase in, three-phase out
Power Consumption	30 kW
Protection	Internal EMC filter, DC choke
Recommended Fuse Size	100
Software	Active energy control, quick start wizard
Torque Rating	CT
User Interface	Graphical Keypad
