Eaton DG1-34105FN-C21C

Name: Eaton DG1-34105FN-C21C
Brand: Eaton
SKU: CS3624982
Price: 11549.15 USD
Availability: OutOfStock

SKU: CS3624982MPN: DG1-34105FN-C21CAlternate Part #: 9702-5005-00PUPC/EAN: 786685878881

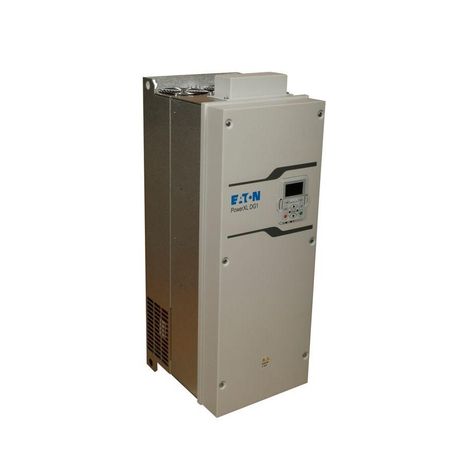

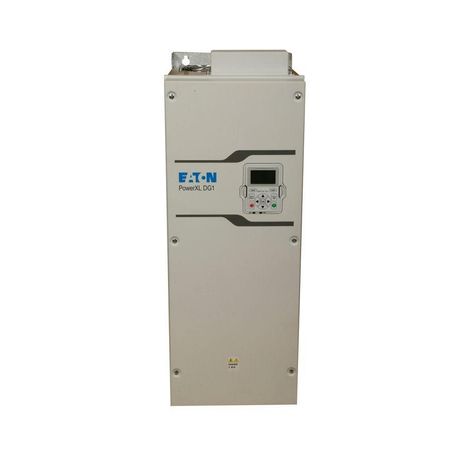

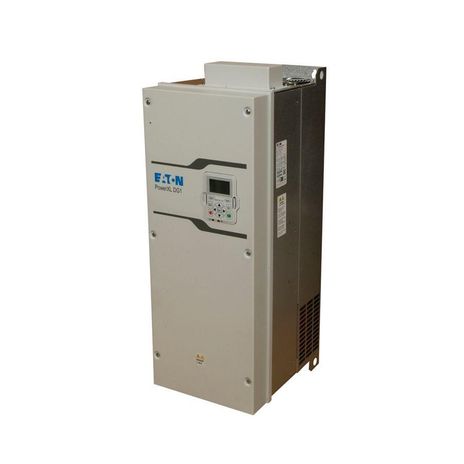

Eaton PowerXL DG1 variable frequency drive

Eaton DG1-32114FB-C21C, DG1-32114FB-C54C, DG1-32114FN-C21C, DG1-32114FN-C54C, DG1-32143FB-C21C, DG1-32143FB-C54C, DG1-32143FN-C21C, DG1-32143FN-C54C, DG1-32170FB-C21C, DG1-32170FB-C54C, DG1-32170FN-C21C, DG1-32170FN-C54C, DG1-34105FB-C21C, DG1-34105FB-C54C, DG1-34105FN-C21C

Product Details

Eaton PowerXL DG1 variable frequency drive, 380-500V input 55 kW 75 Hp CT 3PH 50/60 Hz 105A output IP21/type 1 enclosure FR6 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots

Attributes

Brake Chopper	No brake chopper
Communication	EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU communication
Communications Onboard	EtherNet/IP, Modbus TCP, RS-485: Modbus RTU, BACnet MS/TP
Conformal Coated Boards	Yes
Display	LCD graphical
Electromagnetic Compatibility Filter	EMC Filter
Enclosure	IP21/type 1
Frame Size	6
Frequency Rating	50-60 Hz
High Overload Ct Amps	105 A
High Overload Ct Hp	75 hp
High Overload Ct Kw	55 kW
Horsepower	75 hp
Input Frequency Range	50 - 60 Hz
Input Output	460 Vac (380-500 Vac, -15%, +10%)
Input Voltage	400 V, 380-500 V(-15%, +10%)
Input Voltage Range	380 - 500 V
Internal Dc Choke	Yes
Keypad	Included
Low Overload Vt Amps	140 A
Low Overload Vt Hp	100 hp
Low Overload Vt Kw	75 kW
Material	Coated board
Max Overload	110% for 1 minute
Motor Control Modes	Frequency, Speed, Open-loop speed, Open-loop torque
Motor Type	Inductio, PM (IPM & SPM)
Number Of Slots	2 expansion slots
Output Current Max	105 A
Output Frequency Range	0 - 400 Hz
Phase	Three-phase in, three-phase out
Power Consumption	55 kW
Protection	Internal EMC filter, DC choke
Recommended Fuse Size	175
Series	General purpose
Software	Active energy control, quick start wizard
Torque Rating	CT
User Interface	Graphical Keypad
