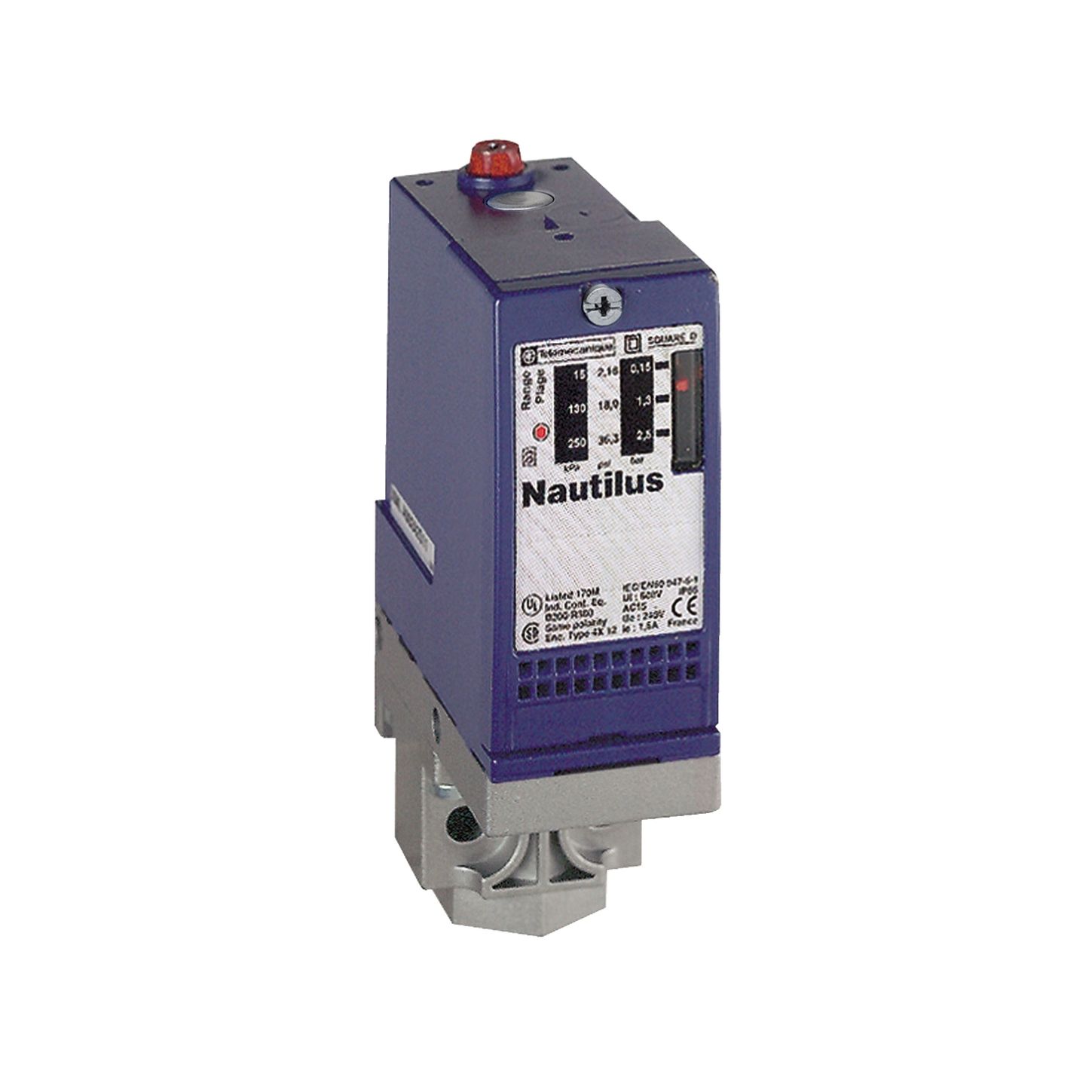

Square D XMLA010A2S11

Name: Square D XMLA010A2S11
Brand: Square D
SKU: CS1673934
Availability: OutOfStock

SKU: CS1673934MPN: XMLA010A2S11

pressure switch XMLA 10 bar - fixed scale 1 threshold - 1 C/O

Product Details

Pressure switch XMLA 10 bar - fixed scale 1 threshold - 1 C/O

Adjustable Range Of Switching Point On Falling Pressure	0.1-9.5 bar
Adjustable Range Of Switching Point On Rising Pressure	0.6-10 bar
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Auxiliary Contacts Operation	snap action
Awg Gauge	AWG 20…AWG 14
Contacts Material	silver contacts
Destruction Pressure	45 bar
Device Short Name	XMLA
Electrical Circuit Type	control circuit
Enclosure Material	zinc alloy
Local Display	with
Materials In Contact With Fluid	FPM, FKM# #zinc alloy
Maximum Permissible Accidental Pressure	22.5 bar
Maximum Permissible Pressure Per Cycle	12.5 bar
Mechanical Durability	5000000 cycles
Operating Position	any position
Pressure Actuator	diaphragm
Pressure Sensor Size	10 bar
Pressure Sensor Size 1	10 bar
Pressure Sensor Type	electromechanical pressure sensor
Pressure Switch Type Of Operation	detection of 1 single threshold
Product Certifications	UL# #EAC# #LROS (Lloyds register of shipping)# #CCC# #CSA# #BV
Product Or Component Type	electromechanical pressure sensor
Product Specific Application	-
Range Of Product	Telemecanique Pressure sensors XM
Scale Type	fixed differential
Setting	external
Standards	CE# #CSA C22.2 No 14# #UL 508# #EN/IEC 60947-5-1
Terminal Block Type	4 terminals
