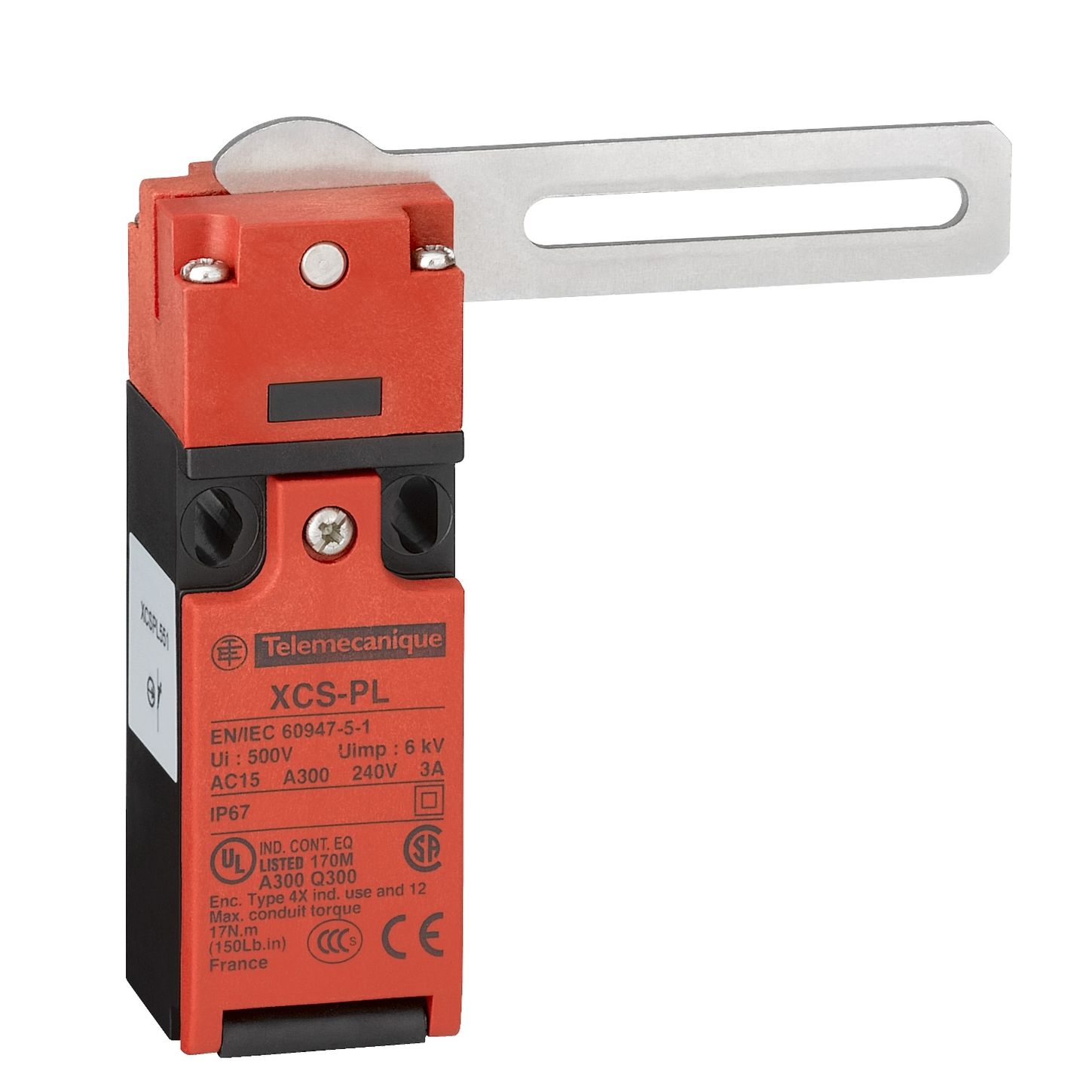

Guard switch, Telemecanique Safety switches XCS, XCSPL, straight lever, to right or to left, 2NC, Pg11

Product Details

Safety switch XCSPL, straight lever, to right or to left , 2NC -Pg11

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Cable Outer Diameter	7-10 mm
Cable Outer Diameter 1	7-10 mm
Clamping Connection Capacity	1 x 0.5…2 x 1.5 mm² with or without cable end
Component Name	XCSPL
Contact Operation	slow-break
Electrical Connection	terminal
Enclosure Material	polyamide PA66 fibre glass impregnated
Head Type	turret head rotary lever
Insulation	double insulated
Lever Material	stainless steel
Material	plastic
Mechanical Durability	1000000 cycles
Minimum Torque For Tripping	0.1 N.m
Number Of Poles	2.0
Operator Direction Information	to right or to left
Positive Opening	with NC contact
Positive Opening Minimum Torque	0.25 N.m
Product Certifications	UL# #CSA# #BG
Product Or Component Type	guard switch
Protective Treatment	TH# #TC
Range Of Product	Telemecanique Safety switches XCS
Standards	EN/IEC 60947-5-4# #EN/ISO 12100# #EN/IEC 60947-5-1# #UL 508# #EN 1088/ISO 14119# #CSA C22.2 No 14# #EN/IEC 60204-1
Tripping Angle	5 °
Type Of Operator	straight lever
