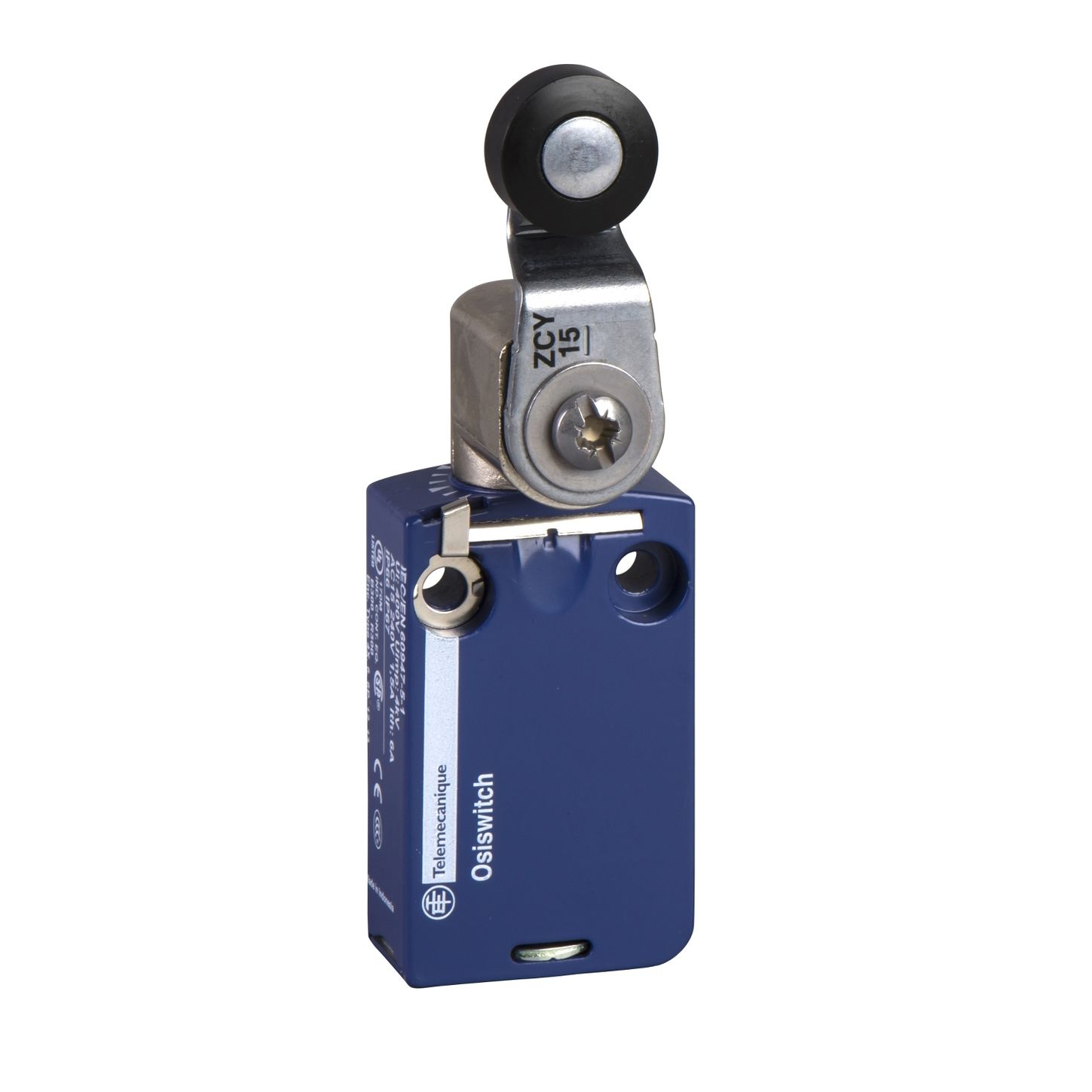

Square D XCMD2115L1

Name: Square D XCMD2115L1
Brand: Square D
SKU: CS4814029
Availability: OutOfStock

SKU: CS4814029MPN: XCMD2115L1

Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1NC+1 NO, snap, 1 m

Product Details

Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1NC+1 NO, snap, 1 m

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	zamak
Body Type	fixed
Cable Composition	5 x 0.75 mm²
Contact Operation	snap action
Contacts Insulation Form	Zb
Contacts Type And Composition	1 NC + 1 NO
Device Short Name	XCMD
Fixing Mode	by the body
Head Material	zamak
Head Type	rotary head
Material	metal
Mechanical Durability	10000000 cycles
Minimum Force For Tripping	0.1 N
Movement Of Operating Head	rotary
Number Of Poles	2.0
Positive Opening	with
Positive Opening Minimum Force	0.5 N
Product Certifications	CCC# #UL# #CSA
Product Or Component Type	limit switch
Protective Treatment	TC
Range Of Product	Telemecanique Limit switches XC Standard
Series Name	standard format
Standards	CSA C22.2 No 14# #EN/IEC 60947-5-1# #UL 508# #EN/IEC 60204-1
Switch Actuation	by 30° cam
Tracks	24/31 mm
Wire Insulation Material	PvR
