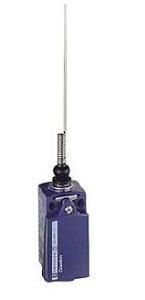

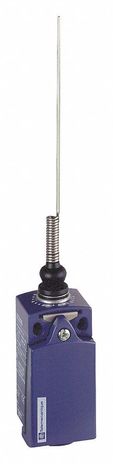

Square D XCKD2106N12

Name: Square D XCKD2106N12
Brand: Square D
SKU: CS4814013
Availability: OutOfStock

SKU: CS4814013MPN: XCKD2106N12

Limit switch, Limit switches XC Standard, XCKD, cat’s whisker, 1NC+1 NO, snap, ½NPT

Product Details

Limit Switch XCKD - cat’s whisker - 1NC+1NO - snap - ½NPT

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	zamak
Body Type	fixed
Contact Operation	snap action
Contacts Insulation Form	Zb
Contacts Type And Composition	1 NC + 1 NO
Device Short Name	XCKD
Fixing Mode	by the body
Head Material	zamak
Head Type	multi-directional head
Material	metal
Mechanical Durability	5000000 cycles
Minimum Torque For Tripping	0.13 N.m
Movement Of Operating Head	multi-directional
Number Of Poles	2.0
Positive Opening	without
Product Certifications	UL# #CSA# #CCC
Product Or Component Type	limit switch
Protective Treatment	TC
Range Of Product	Telemecanique Limit switches XC Standard
Series Name	standard format
Standards	EN 60947-5-1# #UL 508# #IEC 60204-1# #EN 60204-1# #CSA C22.2 No 14# #IEC 60947-5-1
Switch Actuation	by any moving part
