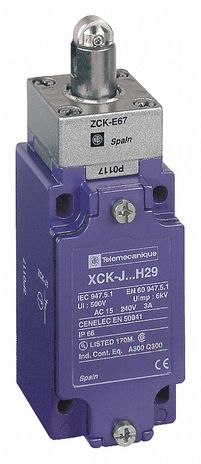

Square D XCKJ167H7

Name: Square D XCKJ167H7
Brand: Square D
SKU: CS2965661
Availability: OutOfStock

SKU: CS2965661MPN: XCKJ167H7

Limit switch, XC Standard, XCKJ, steel roller plunger reinforced, 1NC+1 NO, snap, ½NPT

Product Details

OsiSense Limit Switch

Body Type: Fixed* Head Type: Plunger head* Material: Metal* Movement of Operating Head: Linear* Type of Operator: Spring return roller plunger metal (reinforced)* Type of Approach: Lateral approach 2 directions* Cable Entry: 1 entry tapped for ½ in. NPT cable gland* Number of Poles: 2 Poles* Contacts Type and Composition: 1 NC + 1 NO* Contact Operation: Snap Action* Electrical Connection: Screw-clamp terminals* Conventional Enclosed Thermal Current: 10A* Degree of Protection: IP66 conforming to IEC 60529

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	zamak
Body Type	fixed
Contact Operation	snap action
Contacts Insulation Form	Zb
Contacts Type And Composition	1 NC + 1 NO
Device Short Name	XCKJ
Fixing Mode	by the body
Head Material	zamak
Head Type	plunger head
Material	metal
Mechanical Durability	25000000 cycles
Minimum Force For Tripping	16 N
Movement Of Operating Head	linear
Number Of Poles	2.0
Positive Opening	with
Positive Opening Minimum Force	40 N
Product Certifications	CSA# #CCC# #UL
Product Or Component Type	limit switch
Protective Treatment	TH
Range Of Product	Telemecanique Limit switches XC Standard
Series Name	standard format
Standards	CENELEC EN 50041# #IEC 60947-5-1# #EN 60204-1# #IEC 60204-1# #EN 60947-5-1# #CSA C22.2 No 14# #UL 508
Switch Actuation	by 30° cam
Terminals Description Iso N 1	(13-14)NO# #(21-22)NC
