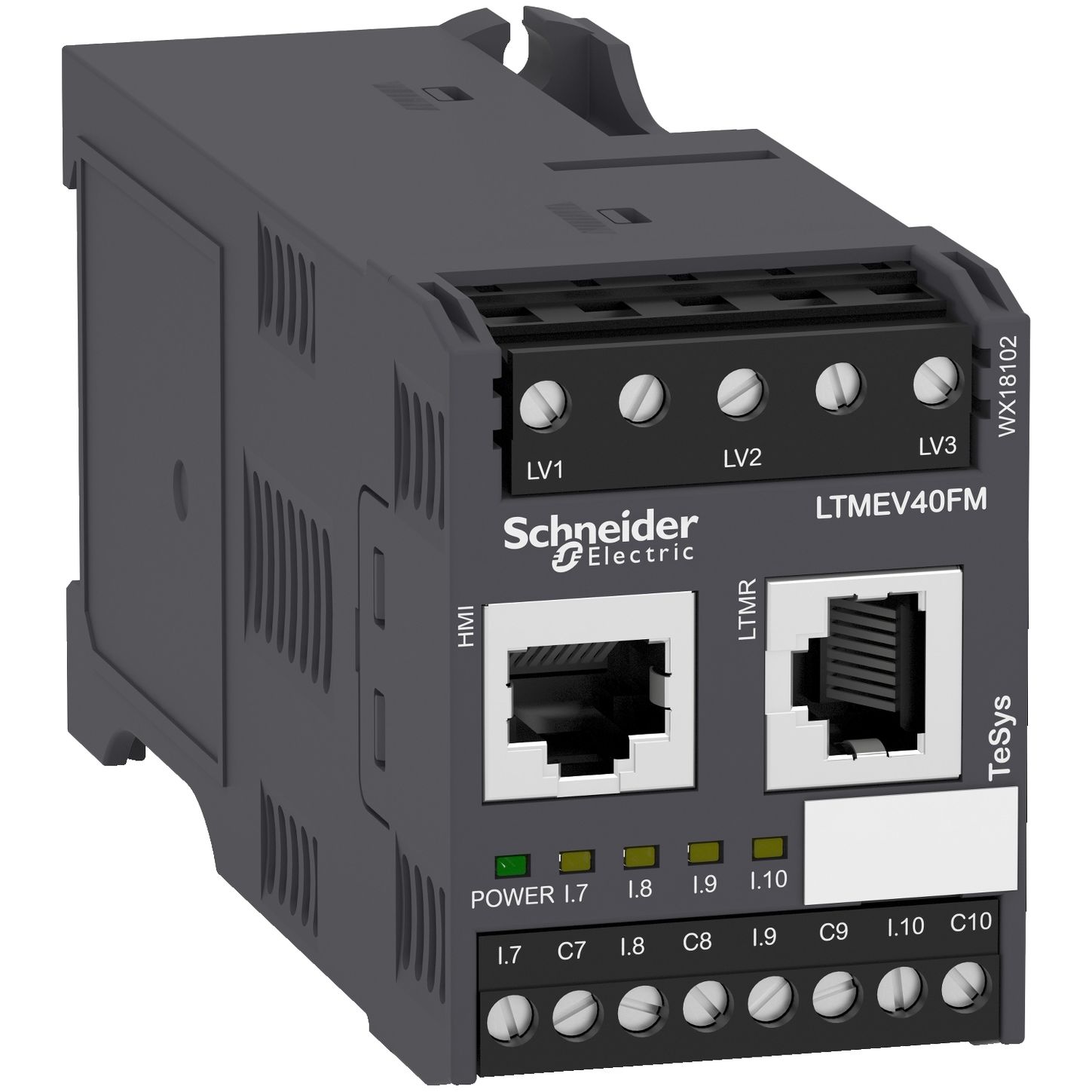

Square D LTMEV40FM

Name: Square D LTMEV40FM
Brand: Square D
SKU: CS4811786
Availability: OutOfStock

SKU: CS4811786MPN: LTMEV40FM

Extension module, TeSys T, 4 inputs, 100 to 240VAC, for LTMR controller

Product Details

Motor Management, TeSys T, extension module, 4 inputs, for LTMR controller, 100 to 240 VAC

Ambient Air Temperature For Storage	-40-80 °C
Compatibility Code	LTME
Connection Pitch	5.08 mm
Device Application	equipment monitoring and control
Device Short Name	LTME
Ip Degree Of Protection	IP20
Logic Input Number	4.0000
Maximum Operating Frequency	2 Hz
Maximum Operating Rate	1800 cyc/h
Metering Type	imbalance voltage# #active power P, P1, P2, P3# #calculated active and reactive energy (± W.h, ± VAR.h)# #voltage U21, U32, U13, V1, V2, V3# #reactive power Q, Q1, Q2, Q3# #frequency# #power factor
Overvoltage Category	III
Pollution Degree	3.0
Product Certifications	LROS (Lloyds register of shipping)# #ATEX# #NOM# #EAC# #RMRoS# #GL# #UL# #DNV# #BV# #RINA# #KERI# #C-Tick# #CSA# #CCC# #ABS
Product Name	TeSys T
Product Or Component Type	extension module
Range	TeSys
Standards	CSA C22.2 No 14# #IACS E10# #IEC 60947-4-1# #UL 508# #EN 60947-4-1
Supply	via the controller
