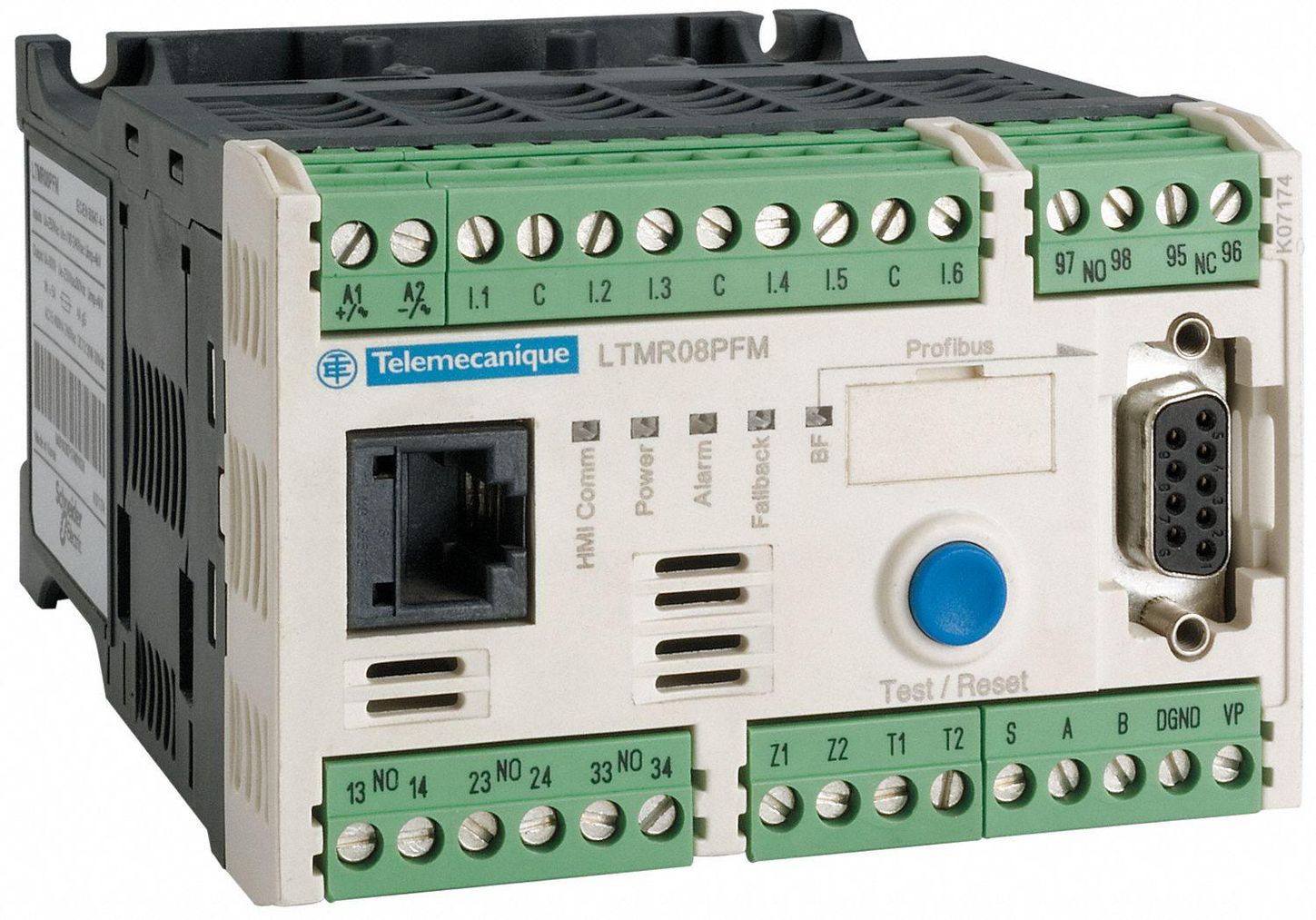

Square D LTMR08PFM

Name: Square D LTMR08PFM
Brand: Square D
SKU: CS4811787
Availability: OutOfStock

SKU: CS4811787MPN: LTMR08PFM

Motor Management, TeSys T, motor controller, Profibus DP, 6 logic inputs, 3 logic outputs, 0.4 to 8A, 100 to 240VAC

Product Details

TeSys T Motor Controller

Measurement Current: 0.4-8A* Rated Supply Voltage: 100-240V AC 50/60 Hz* Communication Port Protocol: Profibus DP* Degree of Protection: IP20

Ambient Air Temperature For Storage	-40-80 °C
Communication Port Protocol	Profibus DP
Compatibility Code	LTMR
Connection Pitch	5.08 mm
Current Consumption	8…62.8 mA
Device Application	equipment monitoring and control
Device Short Name	LTMR
Ip Degree Of Protection	IP20
Logic Input Number	6.0000
Maximum Operating Frequency	2 Hz
Maximum Operating Rate	1800 cyc/h
Measurement Current	0.4-8 A
Metering Type	average current Iavg# #earth-fault current# #temperature# #imbalance current# #phase current I1, I2, I3 RMS
Network And Machine Diagnosis Type	phase fault and earth fault trip counters# #trip history information# #starting current and time# #fault recording# #waiting time after overload tripping# #event recording# #motor control command recording# #running hours counter/operating time# #trip con
Overvoltage Category	III
Pollution Degree	3.0
Product Certifications	CSA# #C-Tick# #UL# #CCC# #LROS (Lloyds register of shipping)# #NOM# #ABS# #GL# #EAC# #BV# #DNV# #RINA# #RMRoS# #ATEX# #KERI
Product Name	TeSys T
Product Or Component Type	motor controller
Protection Type	locked rotor# #overload# #phase unbalance# #phase failure# #earth-leakage protection# #reverse polarity protection# #load fluctuation# #thermal protection# #power factor variation# #thermal overload protection# #overload (long time)
Range	TeSys
Standards	UL 508# #IEC 60947-4-1# #EN 60947-4-1# #IACS E10# #CSA C22.2 No 14
Web Services	web server
