Square D LTMR27MFM

Name: Square D LTMR27MFM
Brand: Square D
SKU: CS4811788
Price: 960.31 USD
Availability: OutOfStock

SKU: CS4811788MPN: LTMR27MFM

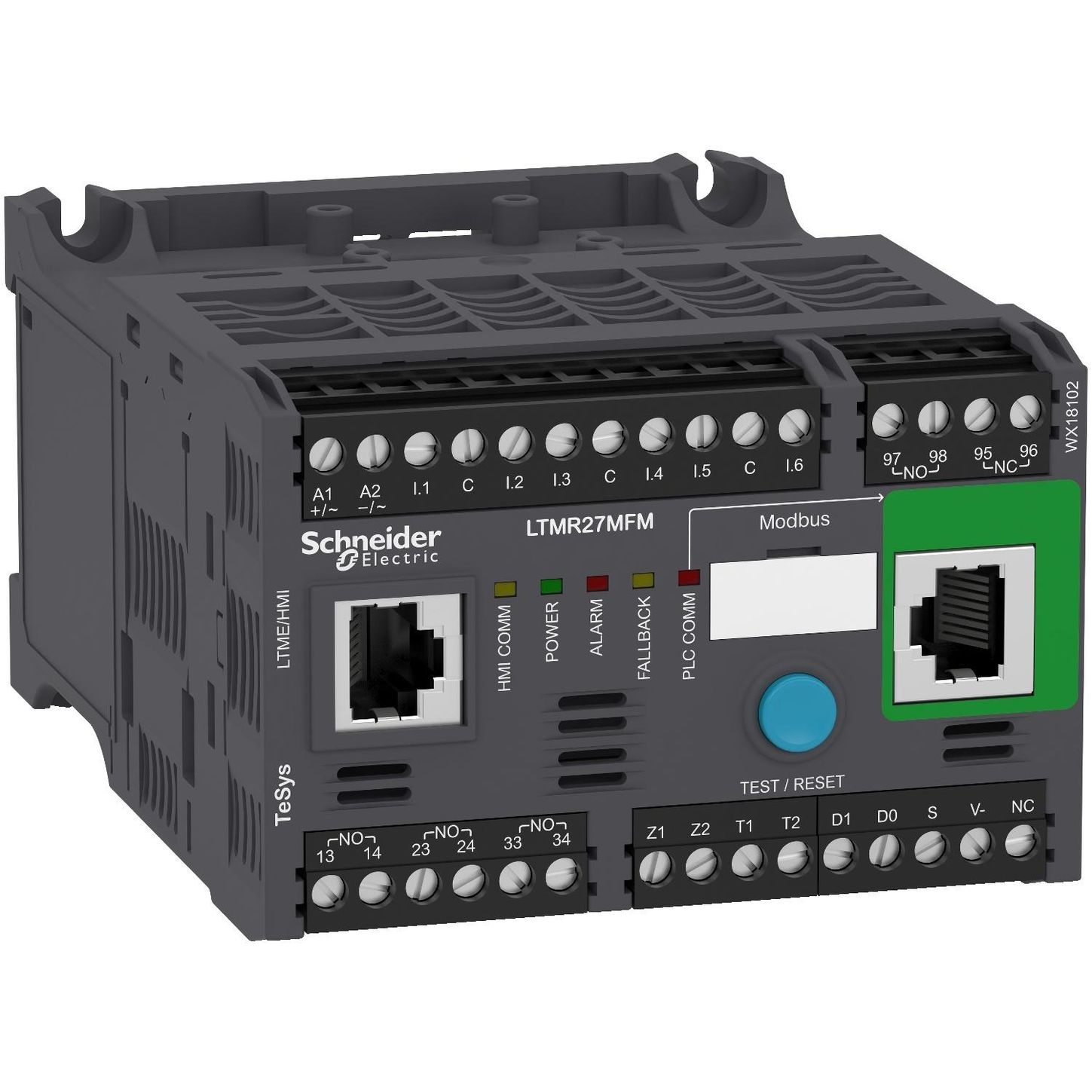

Motor controller, TeSys T, Motor Management, Modbus, 6 logic inputs, 3 logic outputs, 1.35 to 27A, 100 to 240VAC

$960.31

Unit

Available on backorder

Quantity

remove

add

Product Details

Motor controller LTMR TeSys T - 100..240 V AC 27 A for Modbus

Ambient Air Temperature For Storage	-40-80 °C
Communication Port Protocol	Modbus
Compatibility Code	LTMR
Connection Pitch	5.08 mm
Current Consumption	8…62.8 mA
Device Application	equipment monitoring and control
Device Short Name	LTMR
Ip Degree Of Protection	IP20
Logic Input Number	6.0000
Maximum Operating Frequency	2 Hz
Maximum Operating Rate	1800 cyc/h
Measurement Current	1.35-27 A
Metering Type	temperature# #phase current I1, I2, I3 RMS# #average current Iavg# #earth-fault current# #imbalance current
Network And Machine Diagnosis Type	fault recording# #starting current and time# #remaining operating time before overload tripping# #waiting time after overload tripping# #motor control command recording# #event recording# #trip history information# #running hours counter/operating time# #
Overvoltage Category	III
Pollution Degree	3.0
Product Certifications	RMRoS# #LROS (Lloyds register of shipping)# #RINA# #ABS# #CCC# #EAC# #UL# #GL# #NOM# #DNV# #KERI# #ATEX# #BV# #CSA# #C-Tick
Product Name	TeSys T
Product Or Component Type	motor controller
Protection Type	reverse polarity protection# #overload (long time)# #earth-leakage protection# #phase unbalance# #overload# #load fluctuation# #phase failure# #power factor variation# #thermal protection# #locked rotor# #thermal overload protection
Range	TeSys
Standards	CSA C22.2 No 14# #UL 508# #EN 60947-4-1# #IEC 60947-4-1# #IACS E10
Web Services	web server
