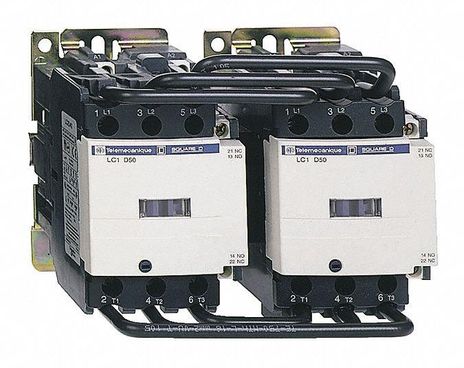

Square D LC2D50G7

Name: Square D LC2D50G7
Brand: Square D
SKU: CS4811685
Price: 1188.13 USD
Availability: OutOfStock

SKU: CS4811685MPN: LC2D50G7

Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, IEC, \<\=440V, 50A, 120V AC 60Hz coil

$1,188.13

Unit

Available on backorder

Quantity

remove

add

Product Details

TeSys D Contactor- Number of Poles: 3-Poles- Pole Contact Composition: 3 NO- Rated Operational Current: 50A- Control Circuit Voltage: 120V AC 50/60 Hz- Reversing

Attributes

Ambient Air Temperature For Operation	-5-60 °C
Ambient Air Temperature For Operation 1	-5-60 °C
Ambient Air Temperature For Storage	-60-80 °C
Assembly Style	ready assembled
Auxiliary Contact Composition	1 NO + 1 NC
Coil Technology	without built-in bidirectional peak limiting diode suppressor
Coil Type	standard
Contactor Application	motor control
Control Circuit Type	AC
Device Short Name	LC2D
Interlocking Type	mechanical
Mechanical Durability	6000000 cycles
Mounting Support	plate# #rail
Overvoltage Category	III
Pole Contact Composition	3 NO
Poles Description	3P
Product Certifications	GL# #UL# #RINA# #GOST# #CSA# #LROS (Lloyds register of shipping)# #CCC# #DNV# #BV# #UKCA
Product Or Component Type	reversing contactor
Protective Cover	with
Range Of Product	TeSys D# #TeSys Deca
Standards	IEC 60947-4-1# #CSA C22.2 No 14# #UL 508# #IEC 60947-5-1# #EN 60947-4-1# #EN 60947-5-1
Utilisation Category	AC-2# #AC-3# #AC-4
