Square D LC1D40G6

Name: Square D LC1D40G6
Brand: Square D
SKU: CS1648883
Availability: OutOfStock

SKU: CS1648883MPN: LC1D40G6

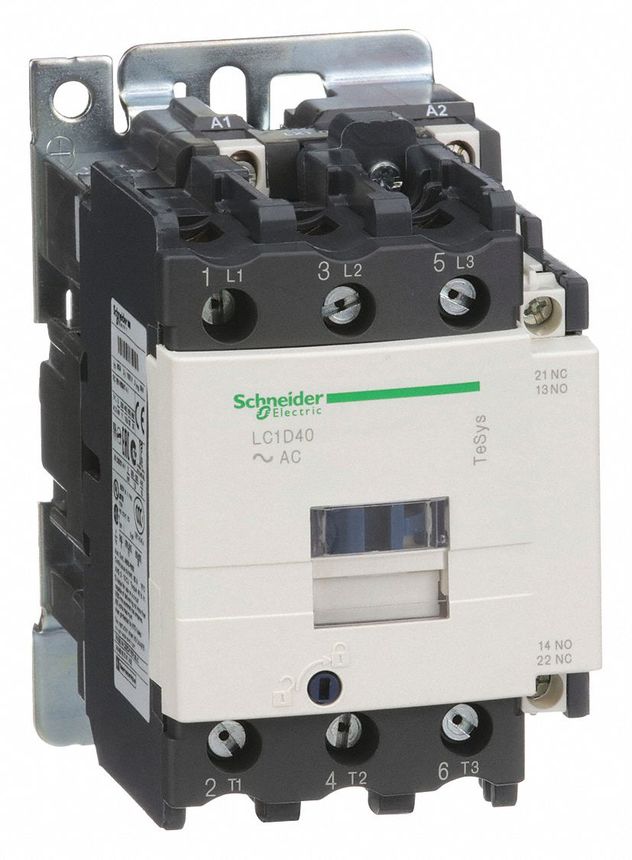

Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/\<\=440V 40A,120V AC 60Hz coil, screw clamp terminals

Product Details

CONTACTOR 600VAC, 120 V AC 60 Hz, 3P, 3 NO, AC-3, 1 NO + 1 NC, 40AMP IEC +OPTIONS

Ambient Air Temperature For Operation	-5-60 °C
Ambient Air Temperature For Operation 1	-5-60 °C
Ambient Air Temperature For Storage	-60-80 °C
Auxiliary Contact Composition	1 NO + 1 NC
Coil Technology	without built-in bidirectional peak limiting diode suppressor
Contactor Application	resistive load# #motor control
Device Short Name	LC1D
Mechanical Durability	6000000 cycles
Mounting Support	rail# #plate
Overvoltage Category	III
Pole Contact Composition	3 NO
Poles Description	3P
Product Certifications	CSA# #BV# #RINA# #GL# #UL# #CCC# #LROS (Lloyds register of shipping)# #GOST# #DNV# #UKCA
Product Or Component Type	contactor
Protective Cover	with
Range	TeSys
Range Of Product	TeSys D# #TeSys Deca
Standards	EN 60947-5-1# #IEC 60947-4-1# #UL 508# #CSA C22.2 No 14# #EN 60947-4-1# #IEC 60947-5-1
Utilisation Category	AC-2# #AC-1# #AC-3# #AC-4# #AC-3e
