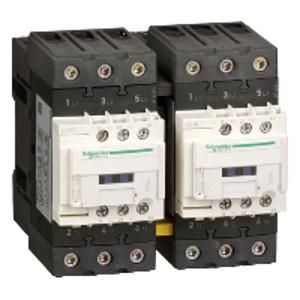

Square D LC2D40G7

Name: Square D LC2D40G7
Brand: Square D
SKU: CS1678798
Availability: OutOfStock

SKU: CS1678798MPN: LC2D40G7

Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, \<\=440V, 40A, 120V AC 60Hz coil

Product Details

TeSys D Contactor- Number of Poles: 3-Poles- Pole Contact Composition: 3 NO- Rated Operational Current: 40A- Control Circuit Voltage: 120V AC 50/60 Hz- Reversing

Attributes

Ambient Air Temperature For Operation	-5-60 °C
Ambient Air Temperature For Operation 1	-5-60 °C
Ambient Air Temperature For Storage	-60-80 °C
Assembly Style	ready assembled
Auxiliary Contact Composition	1 NO + 1 NC
Coil Technology	without built-in bidirectional peak limiting diode suppressor
Coil Type	standard
Contactor Application	motor control
Control Circuit Type	AC
Device Short Name	LC2D
Interlocking Type	mechanical
Mechanical Durability	6000000 cycles
Mounting Support	rail# #plate
Overvoltage Category	III
Pole Contact Composition	3 NO
Poles Description	3P
Product Certifications	GOST# #CCC# #GL# #LROS (Lloyds register of shipping)# #BV# #UL# #DNV# #RINA# #CSA
Product Or Component Type	reversing contactor
Protective Cover	with
Range Of Product	TeSys D
Standards	CSA C22.2 No 14# #IEC 60947-4-1# #EN 60947-4-1# #UL 508# #IEC 60947-5-1# #EN 60947-5-1
Utilisation Category	AC-4# #AC-2# #AC-3
