Square D ILE2K661PC1A3
SKU: CS4811513MPN: ILE2K661PC1A3
brushless DC motor, Lexium ILA ILE ILS, 24 to 48V, EtherNet IP interface, industrial connector, 174mm, straight teeth gear, 54:1
Contact us for pricing and availability
Product Details
Brushless DC Motor 24..48V- EtherNet/IP Interface - L \= 174 mm- 54:1
Attributes
| Us Rated Supply Voltage | 24 V# #48 V |
| Us Rated Supply Voltage 1 | 24 V# #48 V |
| Accuracy Error | ± 0.5 point |
| Ambient Air Temperature For Storage | -25-70 °C |
| Associated Fuse Rating | 16 A |
| Centring Collar Diameter | 16 mm |
| Circle Diameter Of The Mounting Holes | 73.54 mm |
| Continuous Stall Torque | 11.6 N.m |
| Detent Torque | 4.36 N.m |
| Device Short Name | ILE |
| Discrete Output Voltage | 23…25 V |
| Electrical Connection | industrial connector |
| Feedback Type | BLDC encoder |
| Gear Box Type | straight teeth gear, 4 stages |
| Holding Brake | without |
| Input Output Type | 4 signals (each be used as input or output) |
| Marking | CE |
| Maximum Mechanical Speed | 92 rpm |
| Maximum Torsional Backlash | 1 ° |
| Motor Flange Size | 66 mm |
| Motor Type | brushless DC motor |
| Mounting Holes Diameter | 4.4 mm |
| Mounting Support | flange |
| Network Number Of Phases 1 | single phase |
| Network Type | DC |
| Number Of Motor Poles | 6.0000 |
| Number Of Motor Stacks | 1 |
| Number Of Mounting Holes | 4.0000 |
| Product Certifications | cUL# #TÜV# #UL |
| Product Or Component Type | motion integrated drive |
| Protection Type | overload of output voltage# #short circuit of the output voltage# #safe torque off |
| Range Of Product | Lexium integrated drive |
| Reduction Ratio | 54:1 (490:9) |
| Rotor Inertia | 441 kg.cm² |
| Second Shaft | without second shaft end |
| Shaft Diameter | 10 mm |
| Shaft End | keyed |
| Standards | IEC 61800-3, Ed 2# #EN 50347# #EN 61800-3:2001, second environment# #IEC 60072-1# #EN/IEC 61800-3# #EN/IEC 50178# #EN 61800-3 : 2001-02 |
| Supply Voltage Limits | 18-55.2 V |
| Transmission Rate | 125, 250, 500 kbauds |
| Type Of Cooling | natural convection |
| Voltage State 0 Guaranteed | -3…4.5 V |
| Voltage State 1 Guaranteed | 15…30 V |
| Winding Type | medium speed of rotation and medium torque |
Specifications
| SKU | CS4811513 |
|---|---|
| MPN | ILE2K661PC1A3 |
You may also like
Square D ILE1F661PB1A0
Contact us for pricing and availability

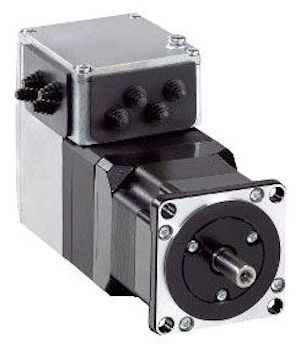

Square D ILE2K661S2174
Contact us for pricing and availabilitySquare D ILE2K661PC1A2
Contact us for pricing and availability
Square D ILS2K571PC1A0
Contact us for pricing and availabilitySquare D ILS1F573S1271
Contact us for pricing and availabilitySquare D ILA2K572PC2A0
Contact us for pricing and availabilitySquare D ILE2T661PC1A2
Contact us for pricing and availabilitySquare D ILA2K572PC1A0
Contact us for pricing and availabilitySquare D ILS1F573PB1A0
Contact us for pricing and availabilitySquare D ILE2K662S2169
Contact us for pricing and availability

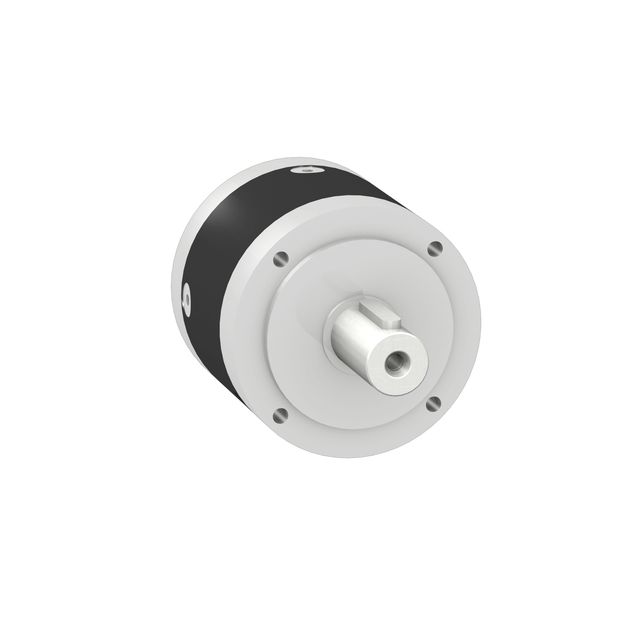

Square D GBX080003K
Contact us for pricing and availability

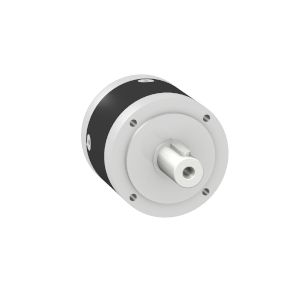

Square D GBX060003K
