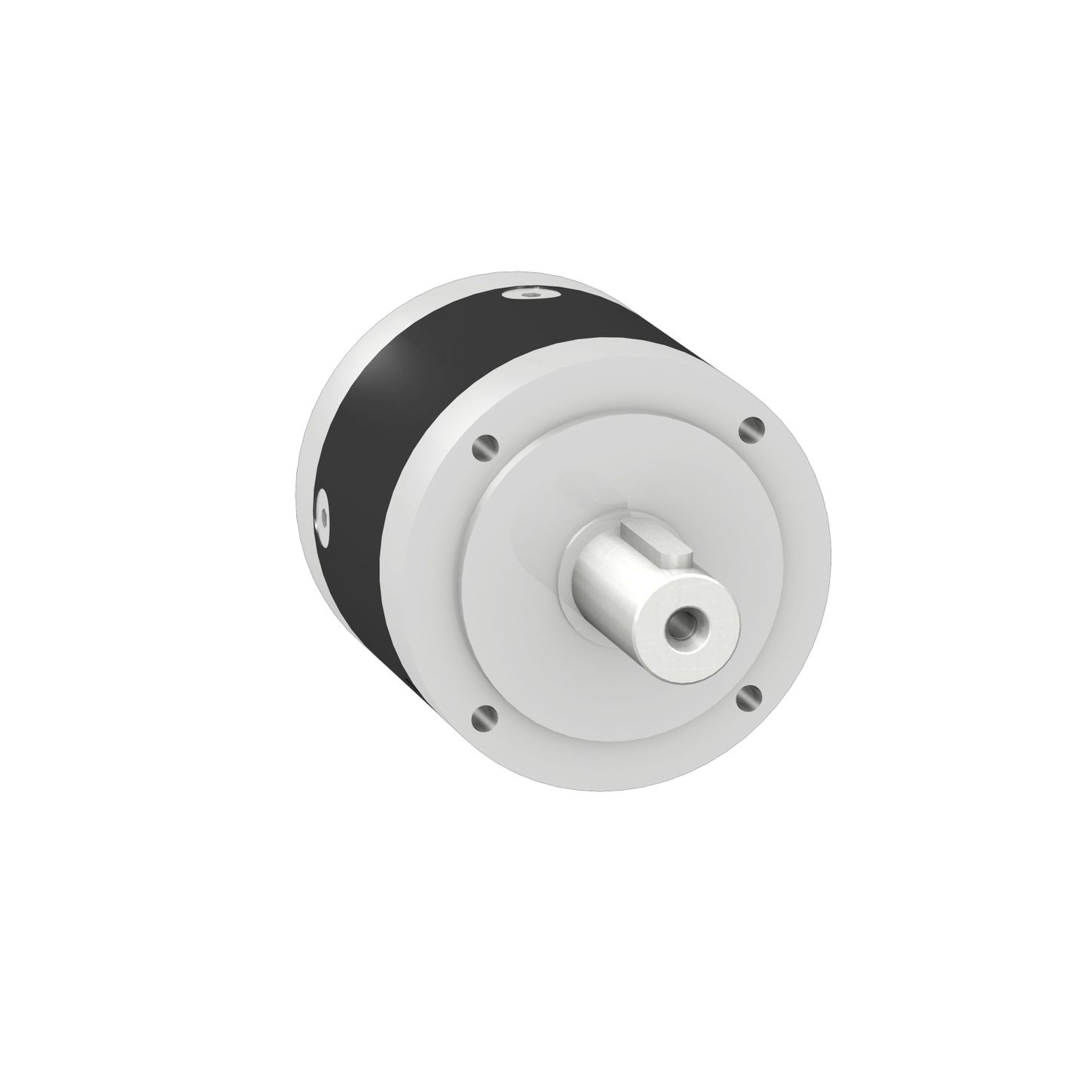

Square D GBX080003K

Name: Square D GBX080003K
Brand: Square D
SKU: CS4811221
Availability: OutOfStock

SKU: CS4811221MPN: GBX080003K

gearbox straight teeth GBX, Lexium, 80mm, reduction 3:1 , 7arc.min, 85N.m

Product Details

Gearbox straight teeth GBX - Ø 80 mm, reduction 3:1 \< 7 arc.min, 85 N.m

Additional Information	lubricated for life
Ambient Air Temperature For Operation	-25-90 °C
Ambient Air Temperature For Operation 1	-25-90 °C
Device Short Name	GBX
Efficiency	0.95999997854233
Gear Box Type	straight teeth
Gearbox External Diameter	80 mm
Housing Colour	black
Housing Material	black anodized aluminium
Internal Diameter	19.0 mm
Maximum Torsional Backlash	7 arc.min
Mounting Position	any position
Product Or Component Type	planetary gearbox
Range Compatibility	Lexium 32# #Lexium SD3# #Lexium 62# #Lexium ILS# #Lexium 62 ILM# #Lexium 52# #Lexium 32i# #Lexium 28
Reduction Ratio	0.126
Shaft Material	C 45
Shaft Moment Of Inertia	0.77 kg.cm²
Torsional Rigidity	6 N.m/arcmin

SKU	CS4811221
MPN	GBX080003K
