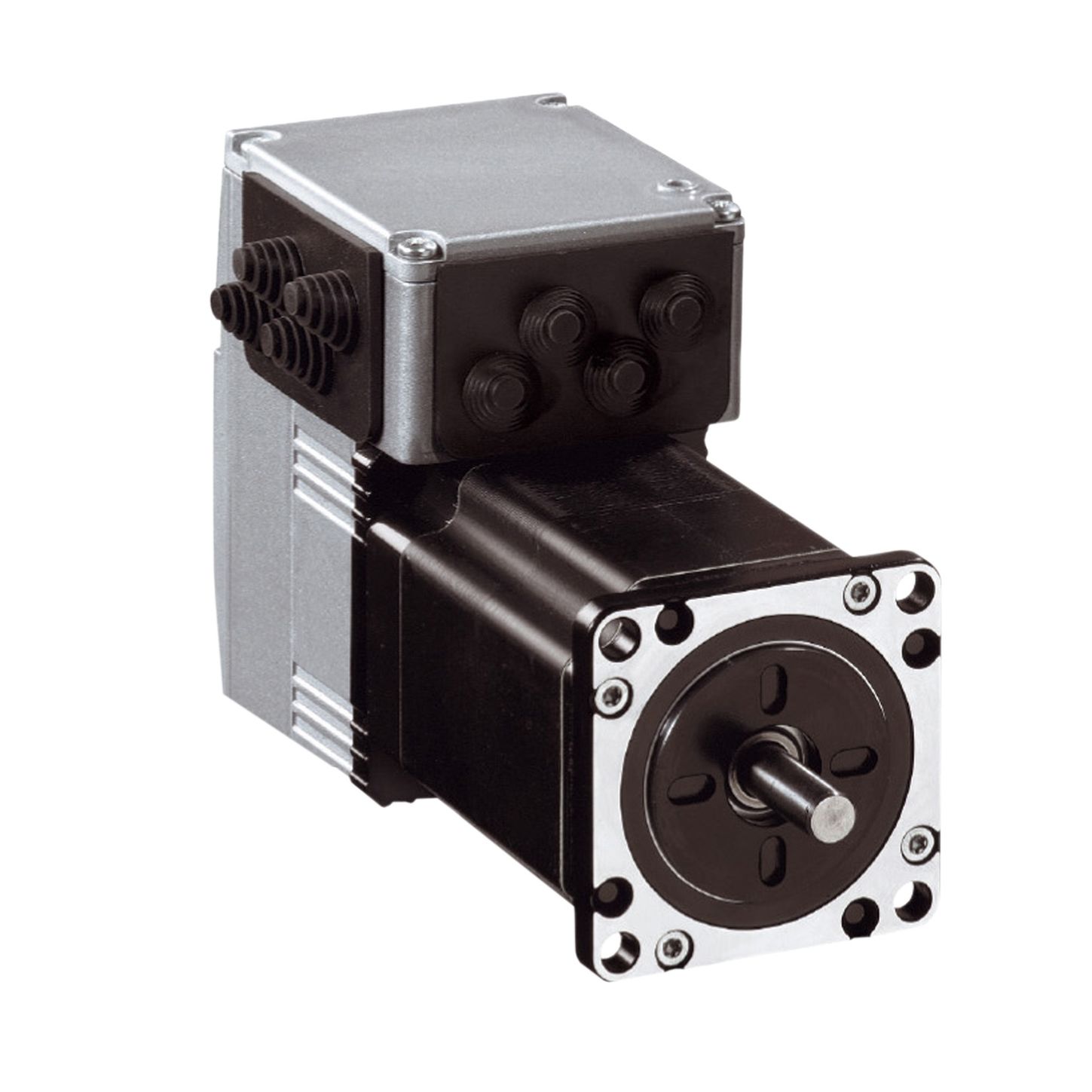

Square D ILS2K571PC1A0
SKU: CS3646262MPN: ILS2K571PC1A0
integrated drive ILS with stepper motor - 24..48 V - EtherNet/IP - 3.5 A
Contact us for pricing and availability
Product Details
Integrated drive ILS with stepper motor - 24..48 V - EtherNet/IP - 3.5 A
Attributes
| Us Rated Supply Voltage | 48 V# #24 V |
| Us Rated Supply Voltage 1 | 48 V# #24 V |
| Accuracy Error | ± 6 arc min |
| Ambient Air Temperature For Storage | -25-70 °C |
| Associated Fuse Rating | 16 A |
| Centring Collar Diameter | 38.1 mm |
| Circle Diameter Of The Mounting Holes | 66.6 mm |
| Continuous Stall Torque | 0.45 N.m |
| Device Short Name | ILS |
| Discrete Output Voltage | 23…25 V |
| Electrical Connection | industrial connector |
| Feedback Type | index pulse |
| Gear Box Type | without |
| Holding Brake | without |
| Input Output Type | 4 signals (each be used as input or output) |
| Marking | CE |
| Maximum Mechanical Speed | 3000 rpm |
| Motor Flange Size | 57 mm |
| Motor Type | 3-phase stepper motor |
| Mounting Holes Diameter | 5.2 mm |
| Mounting Support | flange |
| Network Number Of Phases | single phase |
| Network Number Of Phases 1 | single phase |
| Network Type | DC |
| Number Of Motor Poles | 6.0000 |
| Number Of Motor Stacks | 1 |
| Number Of Mounting Holes | 4.0000 |
| Product Certifications | cUL# #TÜV# #UL |
| Product Or Component Type | motion integrated drive |
| Protection Type | overload of output voltage# #short circuit of the output voltage# #safe torque off |
| Range Of Product | Lexium integrated drive |
| Rotor Inertia | 0.1 kg.cm² |
| Second Shaft | without second shaft end |
| Shaft Diameter | 6.35 mm |
| Shaft End | untapped |
| Standards | EN 61800-3 : 2001-02# #EN/IEC 50178# #EN 50347# #IEC 61800-3, Ed 2# #IEC 60072-1# #EN 61800-3:2001, second environment# #EN/IEC 61800-3 |
| Supply Voltage Limits | 18-55 V |
| Transmission Rate | 125, 250, 500 kbauds |
| Type Of Cooling | natural convection |
| Voltage State 0 Guaranteed | -3…4.5 V |
| Voltage State 1 Guaranteed | 15…30 V |
| Winding Type | medium speed of rotation and medium torque |
Specifications
| SKU | CS3646262 |
|---|---|
| MPN | ILS2K571PC1A0 |
You may also like
Square D ILS1F573S1271
Contact us for pricing and availabilitySquare D ILS1F573PB1A0
Contact us for pricing and availabilitySquare D ILS2D853PB1A0
Contact us for pricing and availabilitySquare D ILA2K572PC1A0
Contact us for pricing and availabilitySquare D ILA2K572PC2A0
Contact us for pricing and availabilitySquare D ILS1F571PB1A0
Contact us for pricing and availability
Square D ILE2K661PC1A3
Contact us for pricing and availability
Square D ILE2K661S2174
Contact us for pricing and availabilitySquare D ILS1V852PB1A0
Contact us for pricing and availabilitySquare D ILE1F661PB1A0
Contact us for pricing and availability
Square D SD315DN10B400
Contact us for pricing and availability

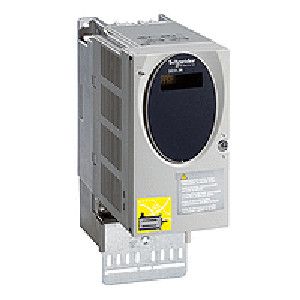

Square D SD326DU25S2
