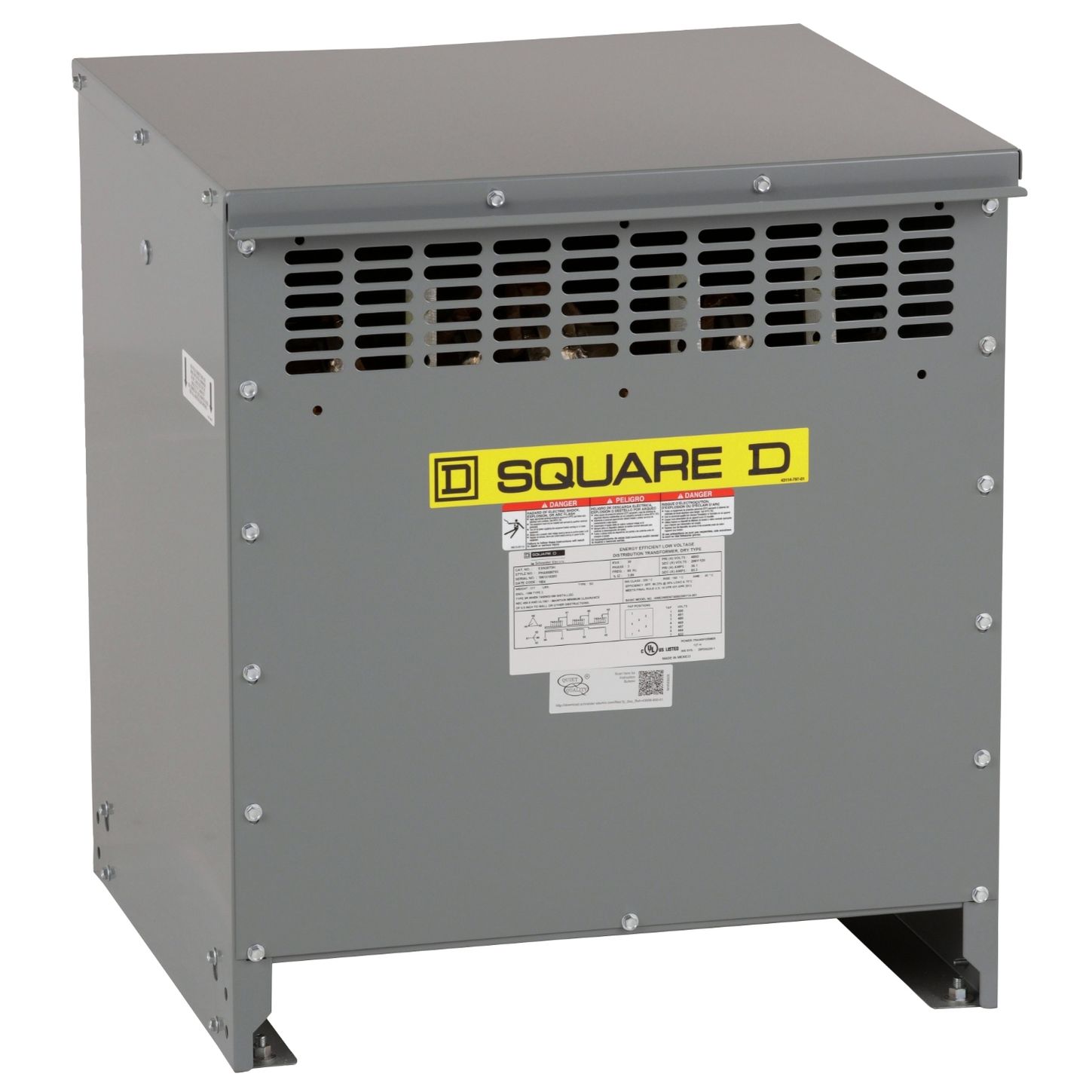

Square D EXN30T3HNLP

Name: Square D EXN30T3HNLP
Brand: Square D
SKU: CS4811145
Availability: OutOfStock

SKU: CS4811145MPN: EXN30T3HNLPUPC/EAN: 785901413080

Transformer, dry type, DOE 2016, 30kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 18M, 150C rise, K13

Product Details

DOE 2016 LV XFMR, 3 Phase, K-13, 30kVA, 480 Delta-208Y/120, AL,

Ipk Rated Peak Withstand Current	1.99 kA
Uimp Rated Impulse Withstand Voltage	10 kV
Ambient Air Temperature For Operation	40-40 °C
Ambient Air Temperature For Operation 1	40-40 °C
Average Ambient Air Temperature For Operation	30 °C
Box Number	18M
Device Application	low voltage electrical distribution
Device Short Name	DOE 2016
Material	aluminium
Network Frequency	60 Hz
Network Number Of Phases	3 phases
Network Number Of Phases 1	3 phases
Percentage Impedance Voltage	0.041799999773502
Percentage Reactance	0.026399999856949
Primary Voltage	480 V delta
Product Or Component Type	DOE 2016 energy efficient transformer
Range Of Product	Square D
Rated Operational Power In Va	30 kVA
Standards	UL 1561# #CSA C22.2 No 47# #NEMA ST-20
Temperature Rise	150 °C# #220 °C insulated
Transformer Type	energy efficient
Type Of Cooling	natural convection
X R Ratio	1.0299999713898
