Square D EXN75T3H
SKU: CS4149582MPN: EXN75T3HUPC/EAN: 785901272687
Transformer, dry type, DOE 2016, 75kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 20M, 150C rise
$4,476.16
UnitAvailable on backorder
Product Details
DOE 2016 LV XFMR, 3 Phase, 75kVA, 480 Delta-208Y/120, AL, 150C Rise
Attributes
| Ipk Rated Peak Withstand Current | 3.71 kA |
| Uimp Rated Impulse Withstand Voltage | 10 kV |
| Ambient Air Temperature For Operation | 40-40 °C |
| Ambient Air Temperature For Operation 1 | 40-40 °C |
| Average Ambient Air Temperature For Operation | 30 °C |
| Box Number | 20M |
| Device Application | low voltage electrical distribution |
| Device Short Name | DOE 2016 |
| Material | aluminium |
| Network Frequency | 60 Hz |
| Network Number Of Phases | 3 phases |
| Network Number Of Phases 1 | 3 phases |
| Percentage Impedance Voltage | 0.0489999987185 |
| Percentage Reactance | 0.039700001478195 |
| Primary Voltage | 480 V delta |
| Product Or Component Type | DOE 2016 energy efficient transformer |
| Range Of Product | Square D |
| Rated Operational Power In Va | 75 kVA |
| Standards | UL 1561# #CSA C22.2 No 47# #NEMA ST-20 |
| Temperature Rise | 150 °C# #220 °C insulated |
| Transformer Type | energy efficient |
| Type Of Cooling | natural convection |
| X R Ratio | 1.539999961853 |
Specifications
| SKU | CS4149582 |
|---|---|
| MPN | EXN75T3H |
| UPC/EAN | 785901272687 |
You may also like

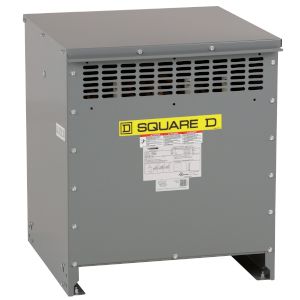

Square D EXN45T3H
$3,152.56Unit

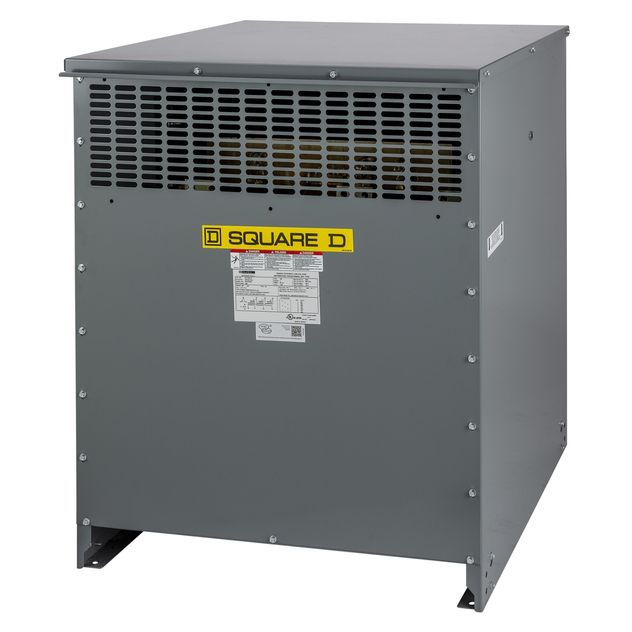

Square D EXN112T3HCU
Contact us for pricing and availability
Square D EXN30T3HNLP
Contact us for pricing and availability
Square D EXN30T3HCU
$4,500.70UnitSquare D EXN30T6H
$3,533.83Unit

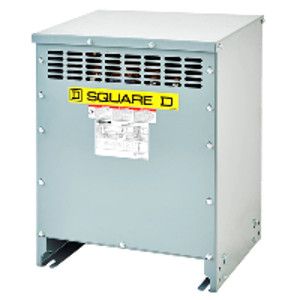

Square D EX15T3HCU
Contact us for pricing and availabilitySquare D EXN75T3HCU
$8,036.89Unit

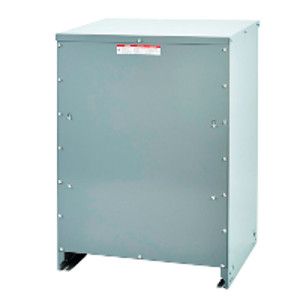

Square D EX30T3HCU
