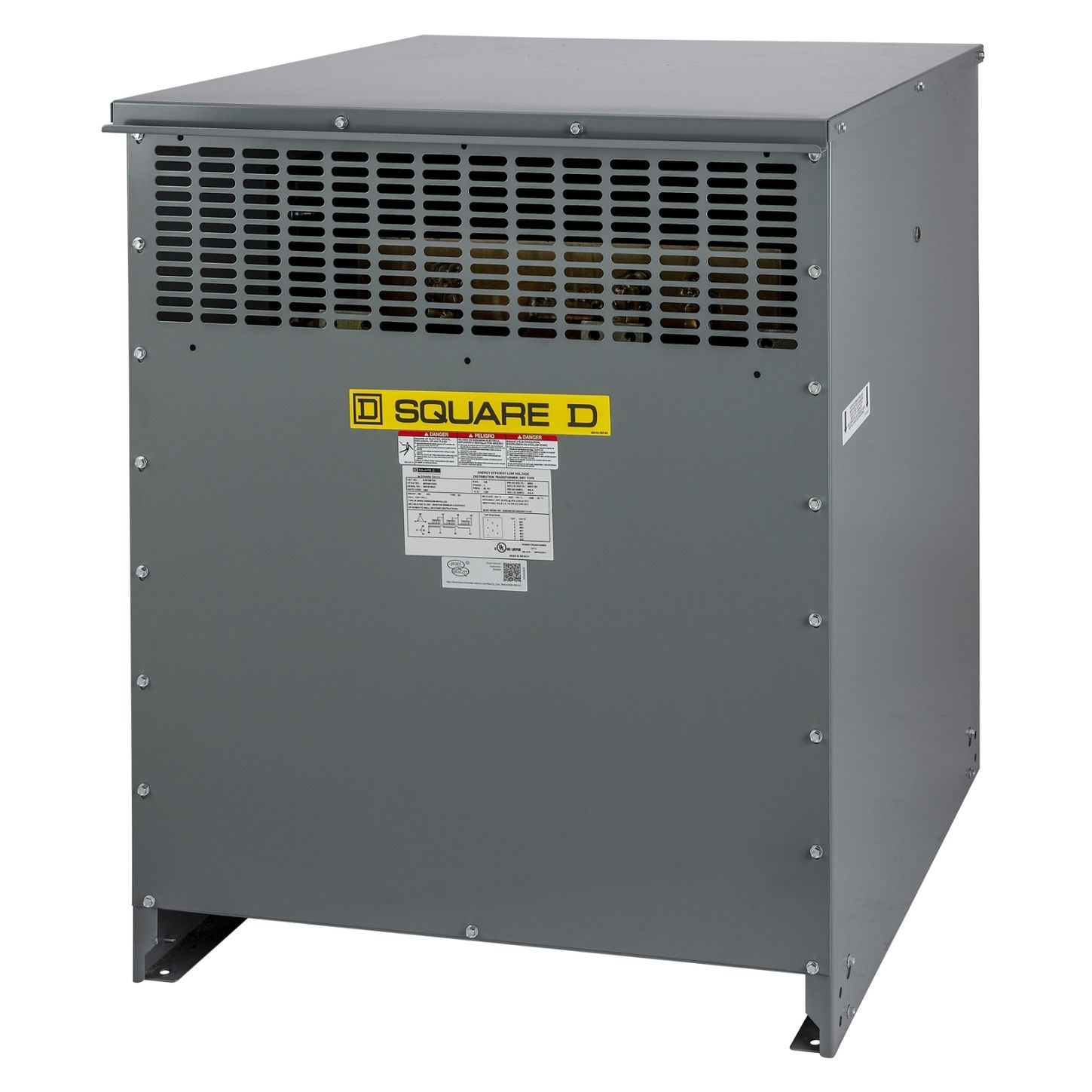

Square D EXN112T3HCU

Name: Square D EXN112T3HCU
Brand: Square D
SKU: CS4175530
Availability: OutOfStock

SKU: CS4175530MPN: EXN112T3HCUUPC/EAN: 785901436881

Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise, Cu

Product Details

Low Voltage Transformer, DOE 2016, 3 Phase, 112.5 kVA, 480V Delta primary / 208Y/120V secondary, CU

Ipk Rated Peak Withstand Current	9.55 kA
Uimp Rated Impulse Withstand Voltage	10 kV
Ambient Air Temperature For Operation	40-40 °C
Ambient Air Temperature For Operation 1	40-40 °C
Average Ambient Air Temperature For Operation	30 °C
Box Number	21M
Device Application	low voltage electrical distribution
Device Short Name	DOE 2016
Material	copper
Network Frequency	60 Hz
Network Number Of Phases	3 phases
Network Number Of Phases 1	3 phases
Percentage Impedance Voltage	0.032699998468161
Percentage Reactance	0.026699999347329
Primary Voltage	480 V delta
Product Or Component Type	DOE 2016 energy efficient transformer
Range Of Product	Square D
Rated Operational Power In Va	112.5 kVA
Standards	UL 1561# #CSA C22.2 No 47# #NEMA ST-20
Temperature Rise	150 °C# #220 °C insulated
Transformer Type	energy efficient
Type Of Cooling	natural convection
X R Ratio	1.3899999856949
