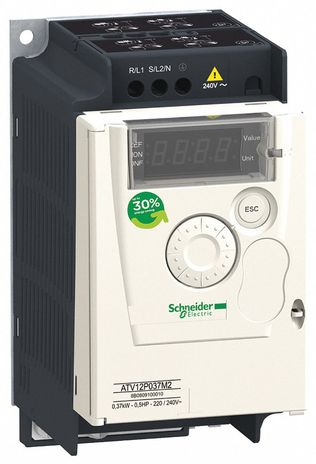

Square D ATV12P037M2

Name: Square D ATV12P037M2
Brand: Square D
SKU: CS4810640
Availability: OutOfStock

SKU: CS4810640MPN: ATV12P037M2

variable speed drive, Altivar 12, 0.37kW, 0.55hp, 200 to 240V, 1 phase, on base plate

Product Details

ATV12 Variable speed drive, 0.37kW, 0.55hp, 200..240V, 1ph, on base plate

Acceleration And Deceleration Ramps	U# #linear from 0 to 999.9 s# #S
Ambient Air Temperature For Storage	-25-70 °C
Analogue Input Number	1.0000
Analogue Output Number	1.0000
Assembly Style	on base plate
Asynchronous Motor Control Profile	sensorless flux vector control# #quadratic voltage/frequency ratio# #voltage/frequency ratio (V/f)
Built In Fan	without
Communication Port Protocol	Modbus
Component Name	ATV12
Discrete Input Number	4.0
Discrete Output Number	2.0000
Emc Filter	integrated
Insulation	electrical between power and control
Marking	CE
Motor Slip Compensation	preset in factory# #adjustable
Noise Level	0 dB
Nominal Switching Frequency	4 kHz
Operating Position	vertical ± 10 degree
Product Certifications	GOST# #CSA# #UL# #C-Tick# #NOM
Product Destination	asynchronous motors
Product Or Component Type	variable speed drive
Product Specific Application	simple machine
Prospective Line Isc	1 kA
Quantity Per Set	set of 1
Range Of Product	Altivar 12
Speed Drive Output Frequency	0.5-400 Hz
