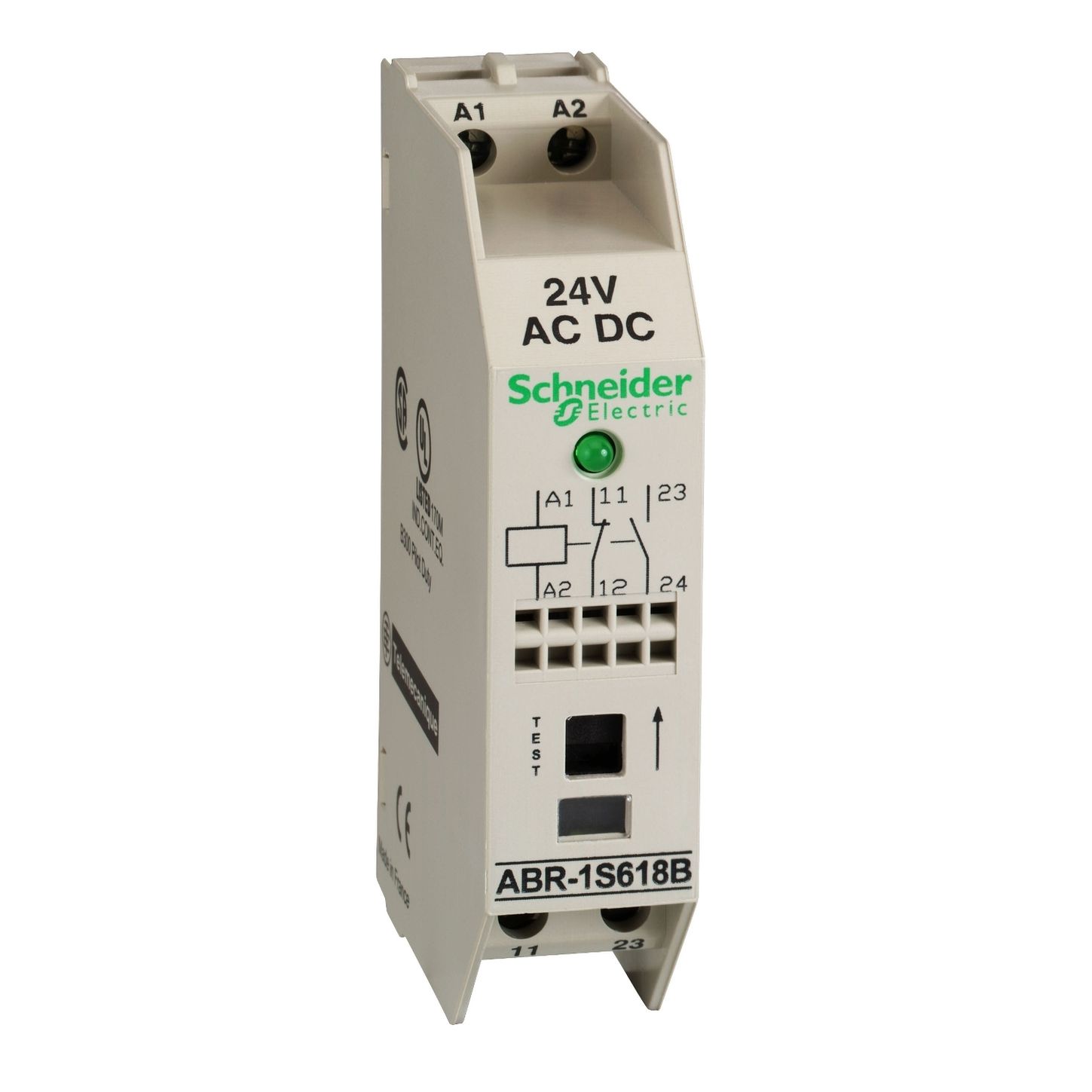

Square D ABR1S618B

Name: Square D ABR1S618B
Brand: Square D
SKU: CS4810568
Availability: OutOfStock

SKU: CS4810568MPN: ABR1S618B

output interface module - 17.5 mm - electromechanical - 24 V AC/DC - 1 NC + 1 NO

Product Details

Output interface module - 17.5 mm - electromechanical - 24 V AC/DC - 1 NC + 1 NO

Uc Control Circuit Voltage	24 V
Ambient Air Temperature For Storage	-40-70 °C
Connections Terminals	screw clamp terminal
Contact Bounce Time	<= 3 ms
Contacts Type And Composition	1 NC + 1 NO
Control Circuit Frequency	50/60 Hz
Control Circuit Type	AC/DC
Drop Out Voltage	3.8 V
Electrical Reliability	<= 0.00000001
Housing Colour	grey
Immunity To Microbreaks	8 ms
Maximum Power Dissipation In W	1.5 W
Mechanical Durability	10000000 cycles
Minimum Switching Current	3 mA
Minimum Switching Voltage	17 V
Mounting Support	asymmetrical DIN rail# #combination rail# #symmetrical DIN rail
Network Frequency	50/60 Hz
Operating Altitude	<= 3000 m
Operating Position	any position
Overlap Time	1 ms
Product Certifications	DNV# #LROS (Lloyds register of shipping)# #CSA# #UL# #BV
Product Or Component Type	electromechanical output interface module
Protective Treatment	TC
Range Of Product	interface for discrete signals
Reverse Polarity Protection	with
Standards	IEC 60947-5-1
