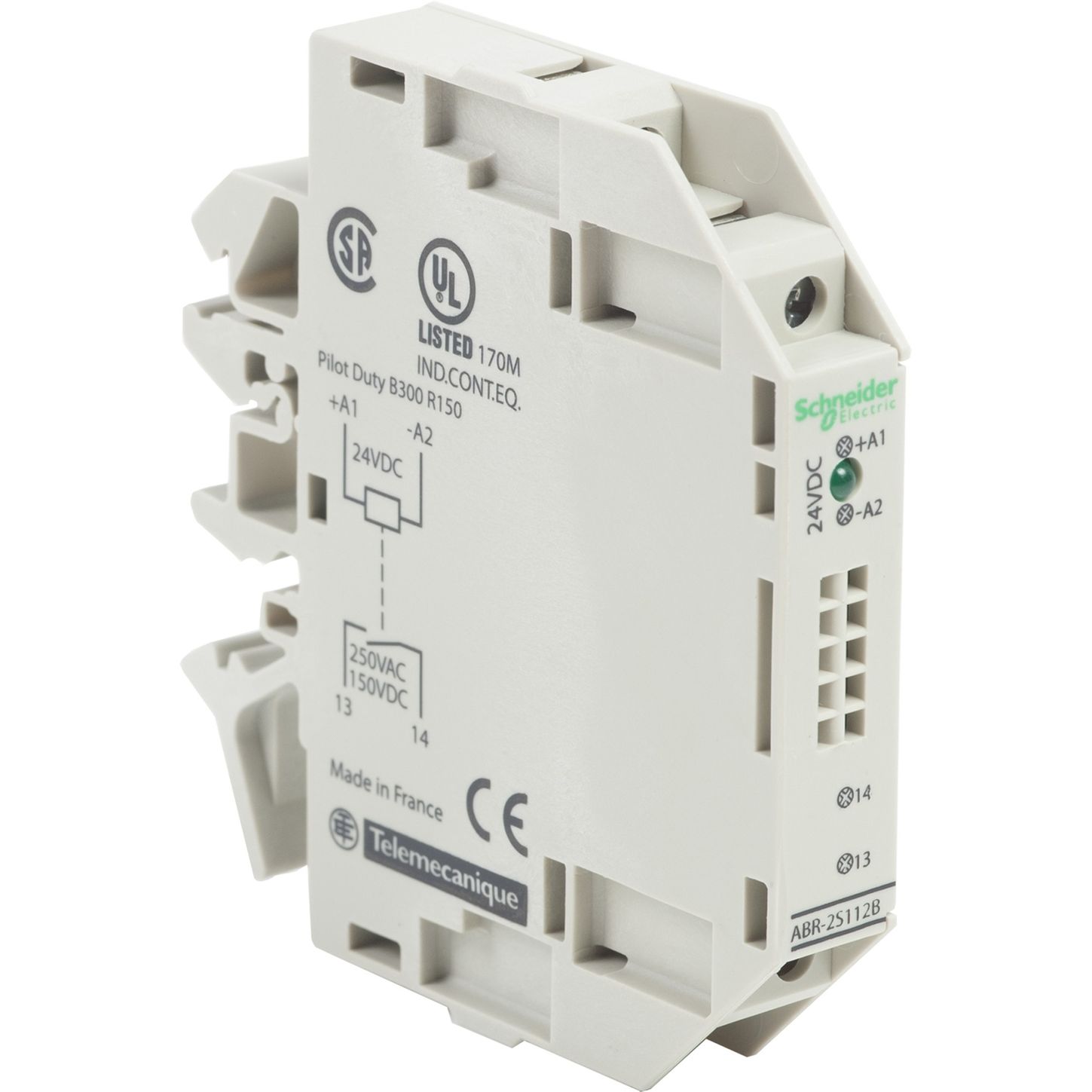

Square D ABR2S112B

Name: Square D ABR2S112B
Brand: Square D
SKU: CS1031351
Availability: OutOfStock

SKU: CS1031351MPN: ABR2S112B

output interface module - 9.5 mm - electromechanical - 24 V DC - 1 NC

Product Details

Output interface module, 9.5 mm, electromechanical, 24 V DC, 1 NC

Uc Control Circuit Voltage	24 V
Ambient Air Temperature For Storage	-40-80 °C
Connections Terminals	screw clamp terminal
Contact Bounce Time	<= 5 ms
Contacts Type And Composition	1 NO
Control Circuit Type	DC
Drop Out Voltage	3.8 V
Electrical Reliability	<= 0.00000001
Holding Current	2 mA
Immunity To Microbreaks	1 ms
Maximum In Rated Current	28 mA
Mechanical Durability	10000000 cycles
Minimum Switching Current	5 mA
Minimum Switching Voltage	5 V
Mounting Support	symmetrical DIN rail# #combination rail# #asymmetrical DIN rail
Network Frequency	50/60 Hz
Operating Altitude	<= 3000 m
Operating Position	any position
Power Dissipation In W	0.64 W
Product Certifications	CSA# #LROS (Lloyds register of shipping)# #BV# #DNV# #UL
Product Or Component Type	slim electromechanical output interface module
Protective Treatment	TC
Range Of Product	interface for discrete signals
Reverse Polarity Protection	with
Sale Per Indivisible Quantity	5.0000
Standards	IEC 60947-5-1
