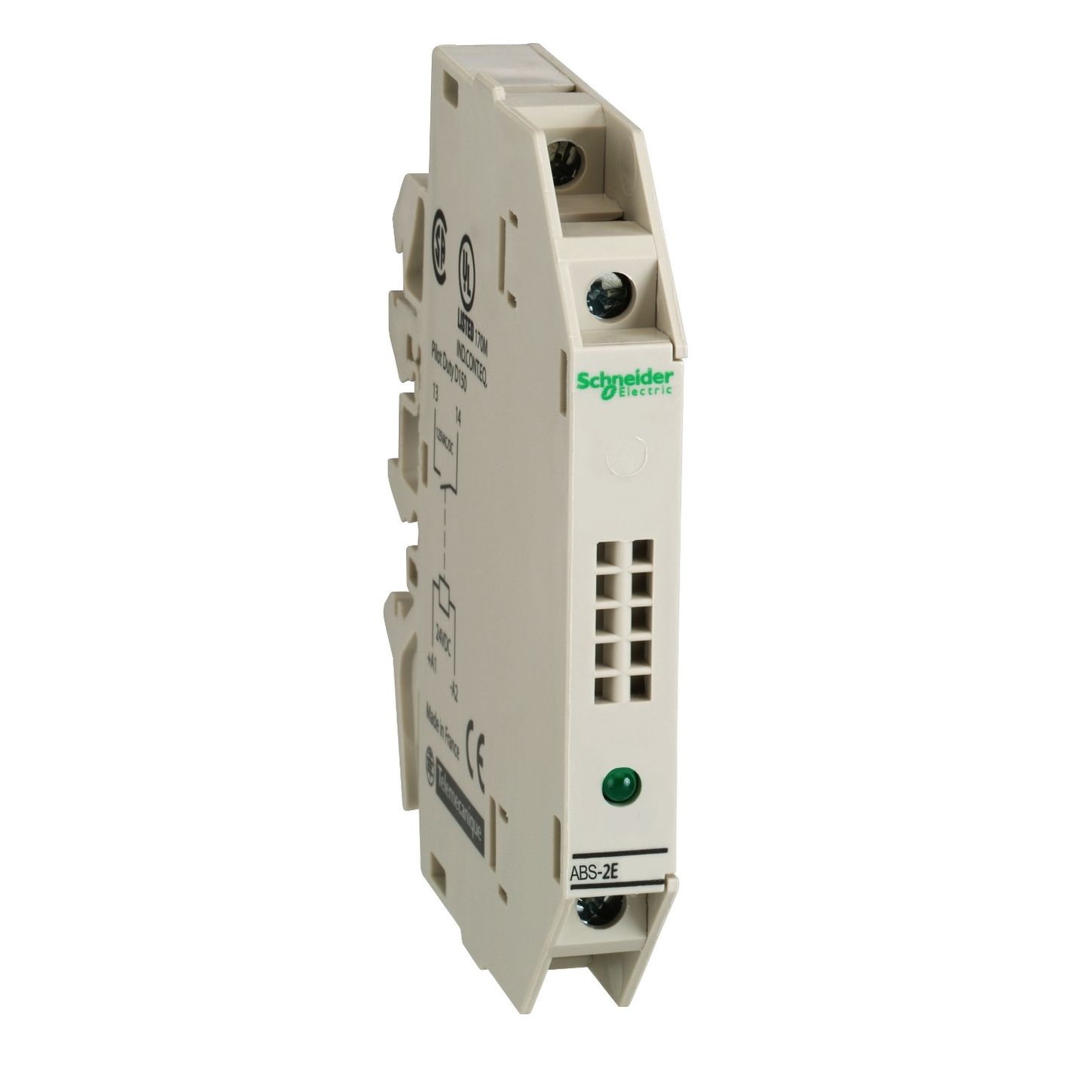

Square D ABS2EC01EB

Name: Square D ABS2EC01EB
Brand: Square D
SKU: CS1654328
Availability: OutOfStock

SKU: CS1654328MPN: ABS2EC01EB

input interface module - 9.5 mm - solid state - 24 V DC

Product Details

Input interface module - 9.5 mm , Solid state, 24 V DC

Uc Control Circuit Voltage	24 V
Ue Rated Operational Voltage	5…48 V
Ambient Air Temperature For Storage	-40-80 °C
Connections Terminals	screw clamp terminal
Contacts Type And Composition	1 NC
Control Circuit Type	DC
Current State 0 Guaranteed	2 mA
Current State 1 Guaranteed	7.7 mA
Maximum In Rated Current	12 mA
Maximum Switching Current	50 mA
Minimum Switching Current	1 mA
Mounting Support	symmetrical DIN rail# #asymmetrical DIN rail# #combination rail
Operating Altitude	<= 300 m
Operating Position	any position
Output Circuit Type	DC
Product Certifications	DNV# #LROS (Lloyds register of shipping)# #CSA# #BV# #UL
Product Or Component Type	slim solid state input interface module
Protective Treatment	TC
Range Of Product	interface for discrete signals
Rated Operational Voltage Limits	2…60 V
Sale Per Indivisible Quantity	5.0000
Standards	IEC 60947-5-1
Voltage State 0 Guaranteed	5.6 V
Voltage State 1 Guaranteed	16.9 V
