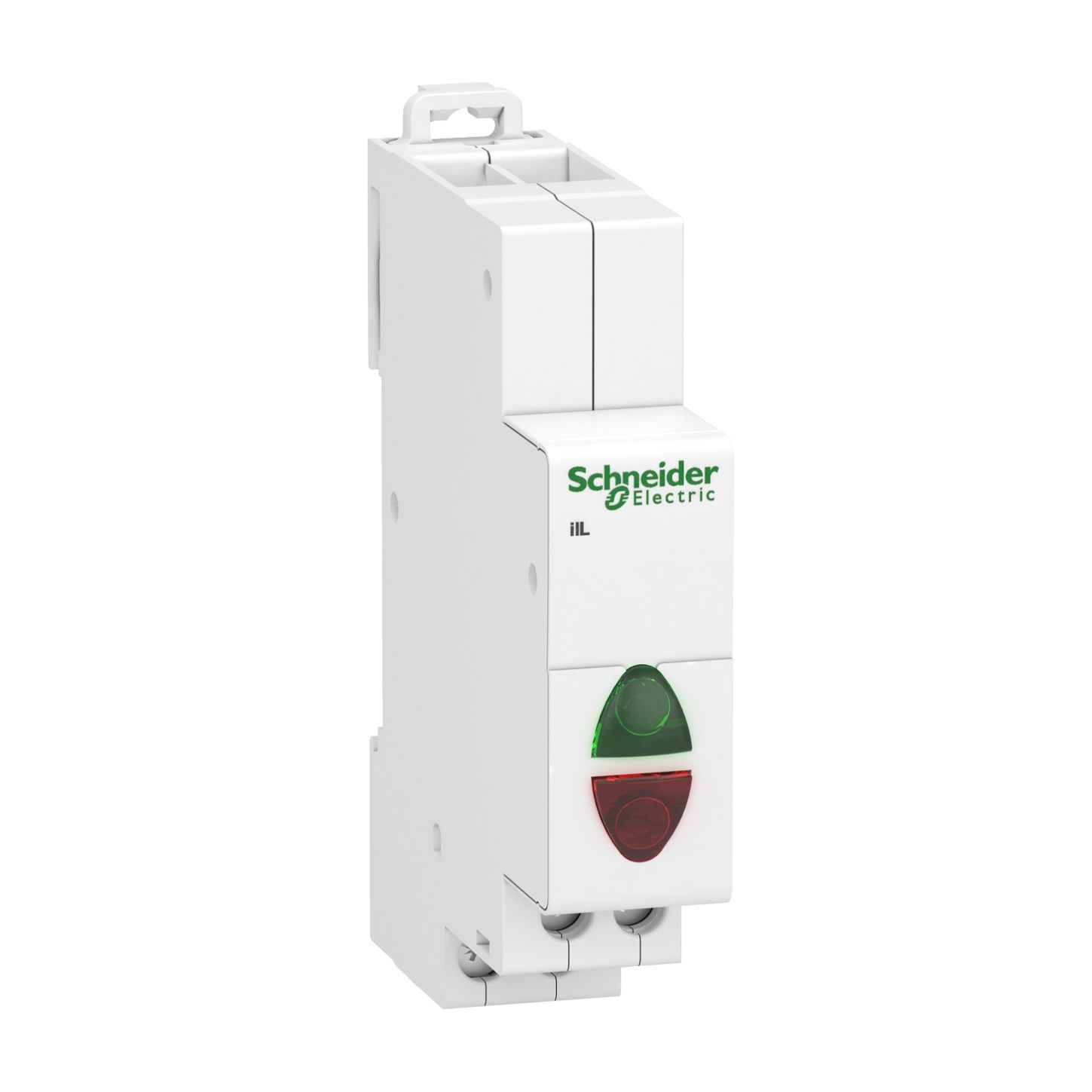

Square D A9E18325

Acti9 iIL double indicator light - Green/Red - 110-230 Vac

Acti9 iIL double indicator light - Green/Red - 110-230 Vac

• Range of product : Acti 9
• Product name : Acti 9 iIL
• Product or component type : Modular pilot ligth
• Device short name : IIL
• Rated supply voltage : 110...230 V AC at 50/60 Hz, 110...130 V DC
• Indicator light : 2 LEDs green/red, service life 100000 h of constant lighting efficiency (consumption 0.6 W)
• Mounting mode : Fixed
• Mounting support : Symmetrical DIN rail
• Comb busbar and distribution block compatibility : Upside: ProDis
• 9 mm pitches : 2
• Height : 82 mm
• Width : 18 mm
• Depth : 69.5 mm
• Colour : hite (RAL 9003)
• Auxiliary connection terminal : Tunnel type terminal 1 cable(s) rigid 0.5 mm², Tunnel type terminal 2 cable(s) rigid 2.5 mm², Tunnel type terminal 1 cable(s) flexible 0.5 mm², Tunnel type terminal 2 cable(s) flexible 2.5 mm², Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm²
• Wire stripping length : 9 mm
• Tightening torque : 1 N.m
• Environment standards : IEC 60947-5-1
• IP degree of protection : IP2 ,IPxx B
• Pollution degree : 2
• Tropicalisation : 2
• Relative humidity : 95 % at 55 °C
• Ambient air temperature for operation : -35…70 °C
• Ambient air temperature for storage : -40…80 °C
