Square D 9001KR16H2

Name: Square D 9001KR16H2
Brand: Square D
SKU: CS4810003
Price: 173.17 USD
Availability: OutOfStock

SKU: CS4810003MPN: 9001KR16H2UPC/EAN: 785901623595

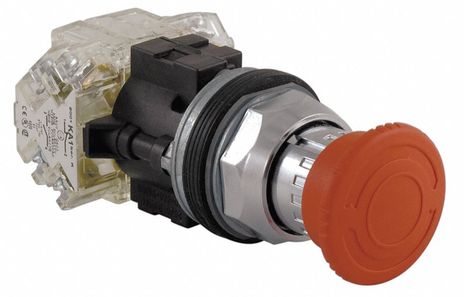

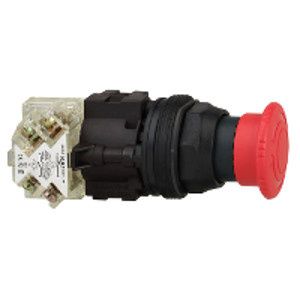

Emergency stop push button, Harmony 9001K, metal, mushroom 40mm, red, 30mm, 2 positions, turn to release, 2 C/O

$173.17

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony 9001K Emergency Stop Pushbutton

Mounting Diameter: 30mm* Type of Operator: Trigger Action (turn to release)* Operator Profile: Red Mushroom 40mm Unmarked* Contacts Types and Composition: 2 NO + 2 NC* Connections - Terminals: Screw Clamp Terminals* Degree of Protection: NEMA 1, 2, 3, 3R, 4, 6, 12, 13

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contacts Material	silver alloy contacts
Contacts Type And Composition	2 NO + 2 NC
Device Presentation	complete product
Device Short Name	9001K
Head Material	plastic
Mechanical Durability	5000000 cycles
Mounting Diameter	30 mm
Operating Position	any position
Operator Position Information	2 positions
Product Certifications	NEMA# #UL 508
Product Or Component Type	emergency stop push-button
Protective Treatment	TC
Range Of Product	Harmony 9001K
Shape Of Signaling Unit Head	round
