Square D 9001KR9GM94

Name: Square D 9001KR9GM94
Brand: Square D
SKU: CS4810010
Availability: OutOfStock

SKU: CS4810010MPN: 9001KR9GM94UPC/EAN: 785901815730

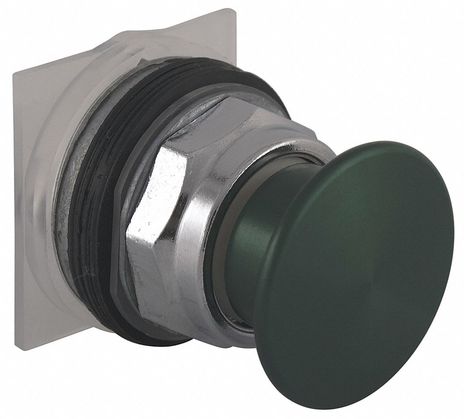

Push-button head, Harmony 9001K, metal, metal mushroom 40mm, green, 30mm, 2 positions, push-pull

Product Details

Harmony 9001K Push Button

Mounting Diameter: 30mm* Operator: Metal Head 1-½ in. (40 mm) Diameter* Operator position information: 2 positions * Color: Green* Contacts type and composition: without contact block

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contacts Type And Composition	without contact block
Device Presentation	basic element
Device Short Name	9001K
Head Material	metal
Mechanical Durability	5000000 cycles
Mounting Diameter	30 mm
Operating Position	any position
Operator Additional Information	screw-in with set screw security
Operator Position Information	2 positions
Product Certifications	UL 508# #NEMA
Product Compatibility	contact block 9001KA..
Product Or Component Type	mushroom head push-button
Protective Treatment	TC
Range Of Product	Harmony 9001K
Shape Of Signaling Unit Head	round
