Square D XB4BS8444

Name: Square D XB4BS8444
Brand: Square D
SKU: CS3145596
Price: 110.81 USD
Availability: OutOfStock

SKU: CS3145596MPN: XB4BS8444

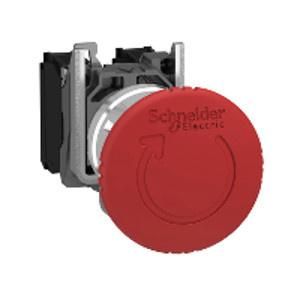

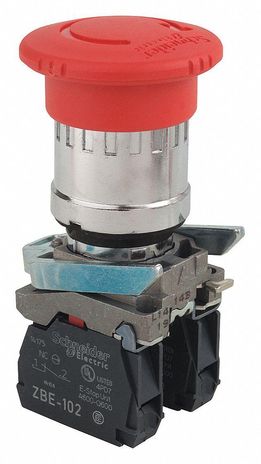

Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC

$110.81

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony Red 40mm Emergency Stop

Mounting Diameter: 22mm* Type of Operator: Trigger Action and Mechanical Latching* Contacts Type and Composition: 2 NC* Rated Insulation Voltage: 600V conforming to EN 60947-1

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Mechanical Durability	300000 cycles
Mounting Diameter	22 mm
Product Certifications	LROS (Lloyds register of shipping)# #BV# #GL# #DNV# #CSA# #UL listed
Product Or Component Type	emergency stop push-button# #emergency switching off push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Reset	turn to release
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	JIS C8201-5-1# #IEC 60364-5-53# #UL 508# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #EN/ISO 13850# #EN/IEC 60947-5-5# #EN/IEC 60947-1# #EN/IEC 60204-1# #EN/IEC 60947-5-4# #JIS C8201-1
Terminals Description Iso N 1	(21-22)NC
