Square D XB5AT845

Name: Square D XB5AT845
Brand: Square D
SKU: CS1676250
Price: 106.77 USD
Availability: OutOfStock

SKU: CS1676250MPN: XB5AT845

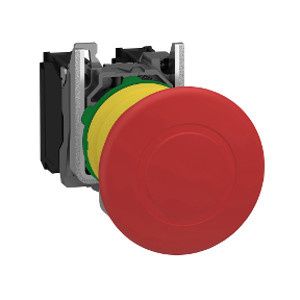

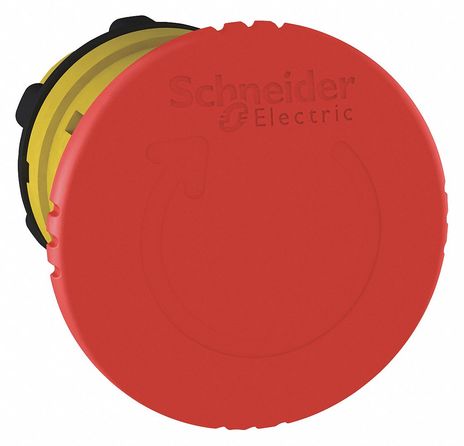

Emergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm trigger latching push pull, 1NO+1NC

$106.77

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony Complete Emergency Stop Pushbutton

Bezel Material: Plastic* Head Type: Standard* Mounting Diameter: 22mm* Shape of Signaling Head: Round* Type of Operator: Trigger action and mechanical latching* Reset: Push-pull* Operator Profile: Red mushroom 40mm unmarked* Contacts Type and Composition: 1 NO + 1 NC* Contact Operation: Slow-break* Connections-Terminals: Screw clamp terminals* Rated Insulation Voltage: 600 V (degree of pollution: 3) conforming to EN 60947-1* NEMA 4X, 13

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	dark grey plastic
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB5
Fixing Collar Material	plastic
Head Type	standard
Mechanical Durability	300000 cycles
Mounting Diameter	22 mm
Product Certifications	BV# #CSA# #DNV# #GL# #UL listed# #LROS (Lloyds register of shipping)
Product Or Component Type	emergency stop push-button# #emergency switching off push-button
Protective Treatment	TH
Range Of Product	Harmony XB5
Reset	push-pull
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Terminals Description Iso N 1	(13-14)NO# #(11-12)NC
