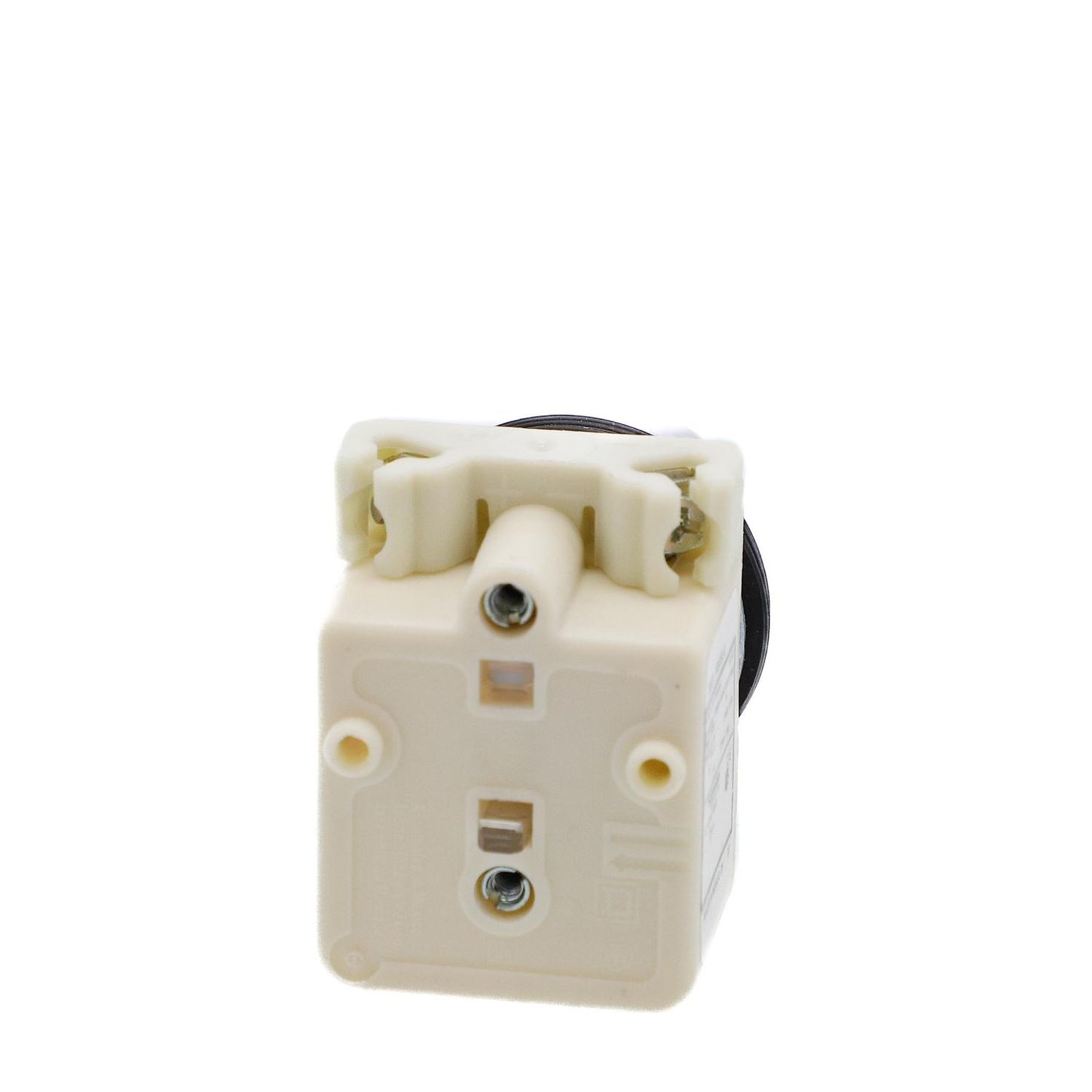

Square D 9001K11J35LGG
SKU: CS4809971MPN: 9001K11J35LGGUPC/EAN: 785901966289
Illuminated selector switch head, Harmony 9001K, metal, standard handle, green, 30mm, 2 positions, stay put, LED green, 24-28V
$133.24
UnitAvailable on backorder
Product Details
SELECTOR SWITCH OPERATOR 30MM T-K
- Bezel material: Chromium plated metal
- Mounting diameter: 30 mm
- Rated supply voltage : 24...28 V AC/DC
- Operator position information: 2 positions
- Light block colour : Green
Attributes
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Operation 1 | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Bezel Material | chromium plated metal |
| Bulb Base | BA 9s |
| Contacts Type And Composition | without contact block |
| Device Presentation | basic element |
| Device Short Name | 9001K |
| Light Block Colour | green |
| Mechanical Durability | 500000 cycles |
| Mounting Diameter | 30 mm |
| Operator Position Information | 2 positions |
| Product Certifications | NEMA# #UL 508 |
| Product Or Component Type | illuminated selector switch |
| Protective Treatment | TC |
| Range Of Product | Harmony 9001K |
| Shape Of Signaling Unit Head | round |
| Standards | CSA C22.2 No 14# #UL 508# #EN/IEC 60947-1# #JIS C 852# #JIS C 4520# #EN/IEC 60947-5-4# #EN/IEC 60947-5-1 |
Specifications
| SKU | CS4809971 |
|---|---|
| MPN | 9001K11J35LGG |
| UPC/EAN | 785901966289 |
You may also like
Square D 9001KS88FB
Contact us for pricing and availability

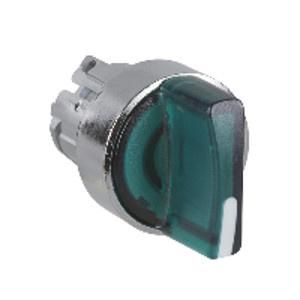

Square D ZB4BK1233
