Square D 9001KR9P35LRR

Name: Square D 9001KR9P35LRR
Brand: Square D
SKU: CS1676143
Price: 193.36 USD
Availability: OutOfStock

SKU: CS1676143MPN: 9001KR9P35LRRUPC/EAN: 785901177609

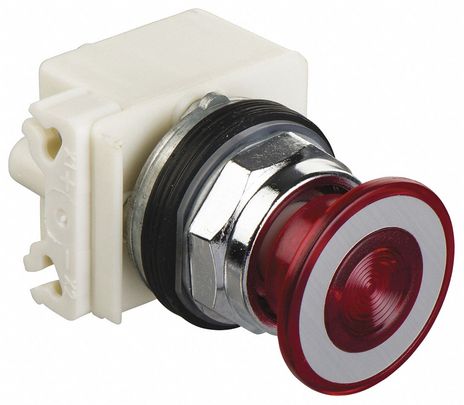

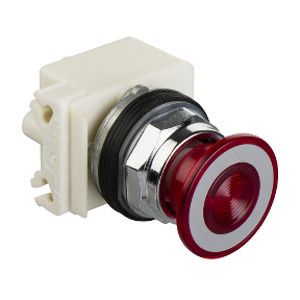

Illuminated push button head, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 24...28V

$193.36

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony 9001K Pushbutton Pilot Light

Mounting Diameter: 30mm* Light Block Supply: Direct* Light Source: Incandescent* Rated Supply Voltage: 24V AC/DC* Degree of Protection: NEMA 1, 2, 3, 3R, 4, 12, 13

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Bulb Base	BA 9s
Compatibility Code	9001K
Contacts Type And Composition	without contact block
Device Short Name	9001K
Light Source	incandescent
Mechanical Durability	5000000 cycles
Mounting Diameter	30 mm
Operating Position	any position
Operator Position Information	2 positions
Product Certifications	NEMA# #UL 508
Product Or Component Type	illuminated mushroom head push-button
Protective Treatment	TC
Range Of Product	Harmony 9001K
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-4# #UL 508# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #JIS C 852# #EN/IEC 60947-1# #JIS C 4520
