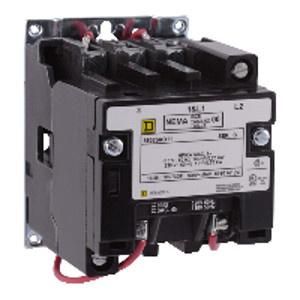

Square D 8502SAO12V03

Name: Square D 8502SAO12V03
Brand: Square D
SKU: CS4809691
Availability: OutOfStock

SKU: CS4809691MPN: 8502SAO12V03UPC/EAN: 785901001836

NEMA Contactor, Type S, nonreversing, Size 00, 9A, 3 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 240 VAC coil, open

Product Details

Class 8502 Type S Full Voltage Magnetic Contactor:

Non-Reversing* NEMA Size: 00* NEMA Degree of Protection: Not Rated* Line Rated Current: 9A* Rated Power in Horsepower: 1.5 HP 200 VAC, 2 HP 460 VAC, 1.5 HP 230 VAC, 2 HP 575 VAC* Phase: 3-Phase* Number of Poles: 3-Pole* Control Circuit: Common Control Circuit* Control Circuit Voltage: 220 VAC 50Hz, 240 VAC 60Hz* Mounting: Surface* System Voltage: 600VAC* Electrical Connection: Screw Clamp Terminals

In Rated Current	0.375
In Rated Current 1	0.375
Auxiliary Contact Composition	without
Contactor Application	non-reversing
Control Circuit	common control circuit
Electrical Connection	screw clamp terminals
Network Number Of Phases	3 phases
Poles Description	3P
Product Certifications	UL listed file E78351 CCN NLDX# #CSA
Product Or Component Type	contactor
Provided Equipment	fuse not supplied
Range Of Product	8502S
