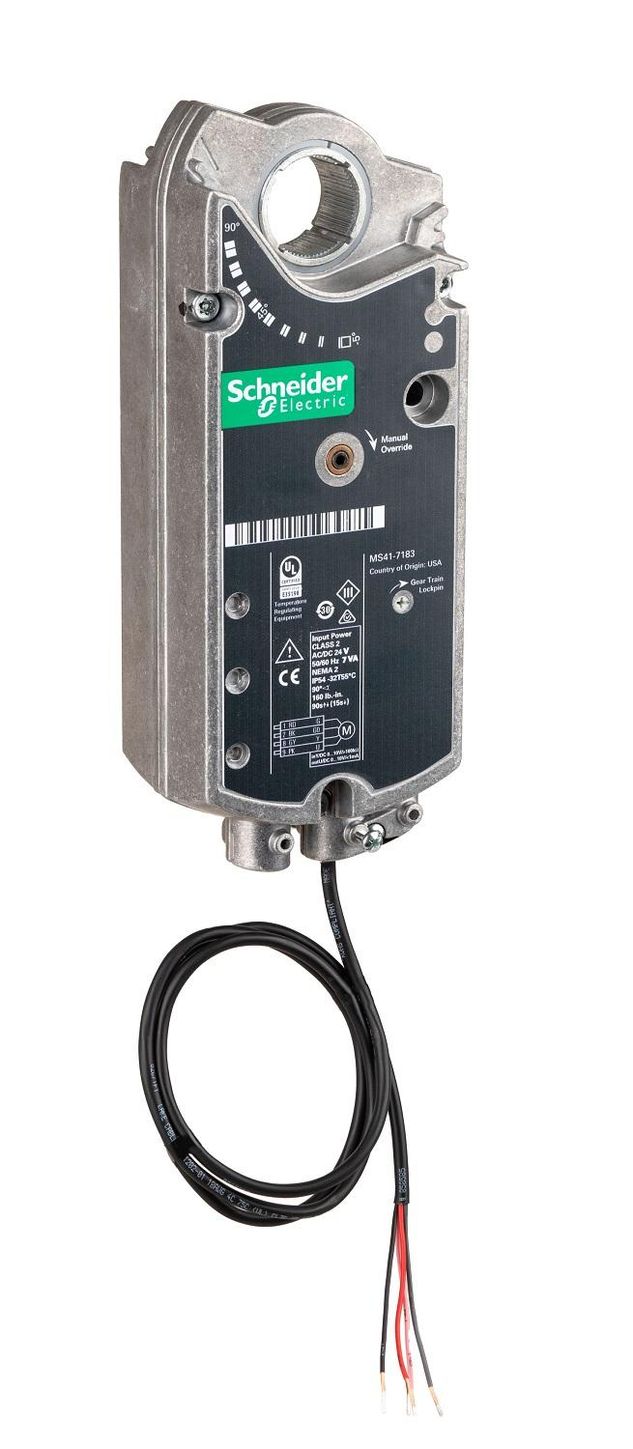

Schneider Electric MS41-7183
SKU: CS4806759MPN: MS41-7183
SmartX, Damper Actuator, Spring Return, 160 lb-in (18 Nm), 24V AC/DC, 0-10 VDC, 90 s Run, Feedback, Plenum cable
Product Details
Actuator: (MS41-7183):
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC/VDC
- Leads and Connections: 3 ft Plenum
- Torque: 160 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: Mx4x-7xxx
- Actuator Use: Dampers
Attributes
| Us Rated Supply Voltage | 24 V AC/DC |
| Actuator | rotary |
| Actuator Rotation | 95 ° |
| Ambient Air Temperature For Operation | -32-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Analogue Input Range | 0…10 V DC |
| Hold In Power Consumption In Va | 5-5 VA |
| Hold In Power Consumption In W | 3-3 W |
| Ip Degree Of Protection | IP54 |
| Motor Type | brushless DC motor |
| Nema Degree Of Protection | NEMA 2 |
| Power Consumption In Va | 7 VA |
| Power Consumption In W | 3 W |
| Relative Humidity | 5-95 % non-condensing |
| Spring Return Timing | 15 s |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54012_XXX |
| Transformer Rated Power In Va | 50 VA |
Specifications
| SKU | CS4806759 |
|---|---|
| MPN | MS41-7183 |
