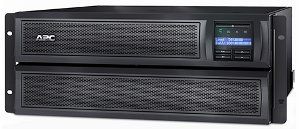

APC SMX3000HV

Name: APC SMX3000HV
Brand: APC
SKU: CS4805362
Availability: OutOfStock

SKU: CS4805362MPN: SMX3000HVUPC/EAN: 731304292616

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 200V-240V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth

Documents

APC SMX3000HV, SMX3000HVT Manual

Product Details

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V

APC Smart-UPS,2700 Watts /3000 VA,Input 208V, 230V /Output 230V, Interface Port SmartSlot, Extended runtime model, Rack Height 4 U

Includes: CD with software, Documentation CD, Rack Mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual

Attributes

Sena Acoustic Level	55 dBA
Sena Additional Specification	extended run
Sena Alarm	alarm when on battery : distinctive low battery alarm : configurable delays
Sena Ambient Air Temperature For Operation	0-40 °C
Sena Ambient Air Temperature For Storage	-15-45 °C
Sena Battery Charger Power	245 W rated
Sena Battery Curve	C
Sena Battery Life	3-5 year(s)
Sena Battery Option	SMX120BP 1 2214 VAh SMX120BP 10 15498 VAh SMX120BP 2 3690 VAh SMX120BP 3 5166 VAh SMX120BP 4 6642 VAh SMX120BP 6 9594 VAh SMX120BP 8 12546 VAh
Sena Battery Recharge Time	3 h
Sena Battery Type	lead-acid battery
Sena Control Panel	LED status display with on line : on battery : replace battery and overload indicators# #multifunction LCD status and control console
Sena Crest Factor	0.126
Sena Curve Equation	efficiency
Sena Curve Fixed Loss	0.013399999588728
Sena Curve Load Maximum	1.0000
Sena Curve Load Minimum	0.019999999552965
Sena Curve Proportional Loss	9.9999997473788E-5
Sena Curve Square Loss	0.0015999999595806
Sena Curve Test Cond Id	Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Emergency Power Off	yes
Sena Extended Runtime	1.0000
Sena Free Slots	1.0000
Sena Graph Display	1.0000
Sena Harmonic Distortion	less than 5 %
Sena Heat Dissipation	184 Btu/h
Sena Input Voltage	208 V 230 V
Sena Input Voltage 1	208 V 230 V
Sena Input Voltage Limits	140…280 V
Sena Maximum Configurable Power In Va	3000 VA
Sena Maximum Configurable Power In W	2700 W
Sena Mounting Location	front
Sena Mounting Mode	rack-mounted
Sena Mounting Preference	lower
Sena Nb Of Power Socket Outlets	2 IEC 320 C19 2 IEC Jumpers 8 IEC 320 C13
Sena Network Frequency	50/60 Hz ± 3 Hz auto-sensing
Sena Noise Suppression	full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Sena Number Of Battery Replacement Quantity	1.0000
Sena Number Of Cables	1.0000
Sena Number Of Power Module	2400.0000
Sena Number Of Rack Unit	4U
Sena Number Of Tare Power	41 W
Sena Operating Altitude	0…10000 ft
Sena Output Frequency	50/60 Hz ± 3 Hz sync to mains
Sena Output Voltage	230 V
Sena Output Voltage 1	230 V
Sena Performance Multiplier	1.0000
Sena Plug Standard	BS1363A British IEC 320 C20 Schuko CEE 7 / EU1-16P
Sena Product Certifications	CE# #EAC# #IRAM# #RCM# #TISI# #VDE
Sena Provided Equipment	CD with software documentation CD rack mounting brackets Smart UPS signalling RS-232 cable USB cable user manual
Sena Provided Equipment 1	CD with software documentation CD rack mounting brackets Smart UPS signalling RS-232 cable USB cable user manual
Sena Provided Equipment 2	CD with software documentation CD rack mounting brackets Smart UPS signalling RS-232 cable USB cable user manual
Sena Rated Power In Va	3000 VA
Sena Rated Power In W	2700 W
Sena Redundant	No
Sena Relative Humidity	0-95 %
Sena Show Note Op Temperature	No
Sena Size Ups Version	internetworking# #server# #telecom
Sena Standards	EN/IEC 62040-1# #EN/IEC 62040-2
Sena Storage Altitude	0-50000 ft
Sena Storage Relative Humidity	0-95 %
Sena Surge Energy Rate	645 J
Sena Transfer Time	6 ms typical : 10 ms maximum
Sena Two Post Mountable	1.0000
Sena Ups Size	S
Sena Ups Type	line interactive
Sena Usb Compatible	Yes
Sena Value Multiplier	1.0000
Sena Wave Type	sine wave
