APC SMX1500RMI2UNC

Name: APC SMX1500RMI2UNC
Brand: APC
SKU: CS3683508
Availability: OutOfStock

SKU: CS3683508MPN: SMX1500RMI2UNCAlternate Part #: APC-SMX1500RMI2UNCUPC/EAN: 731304281702

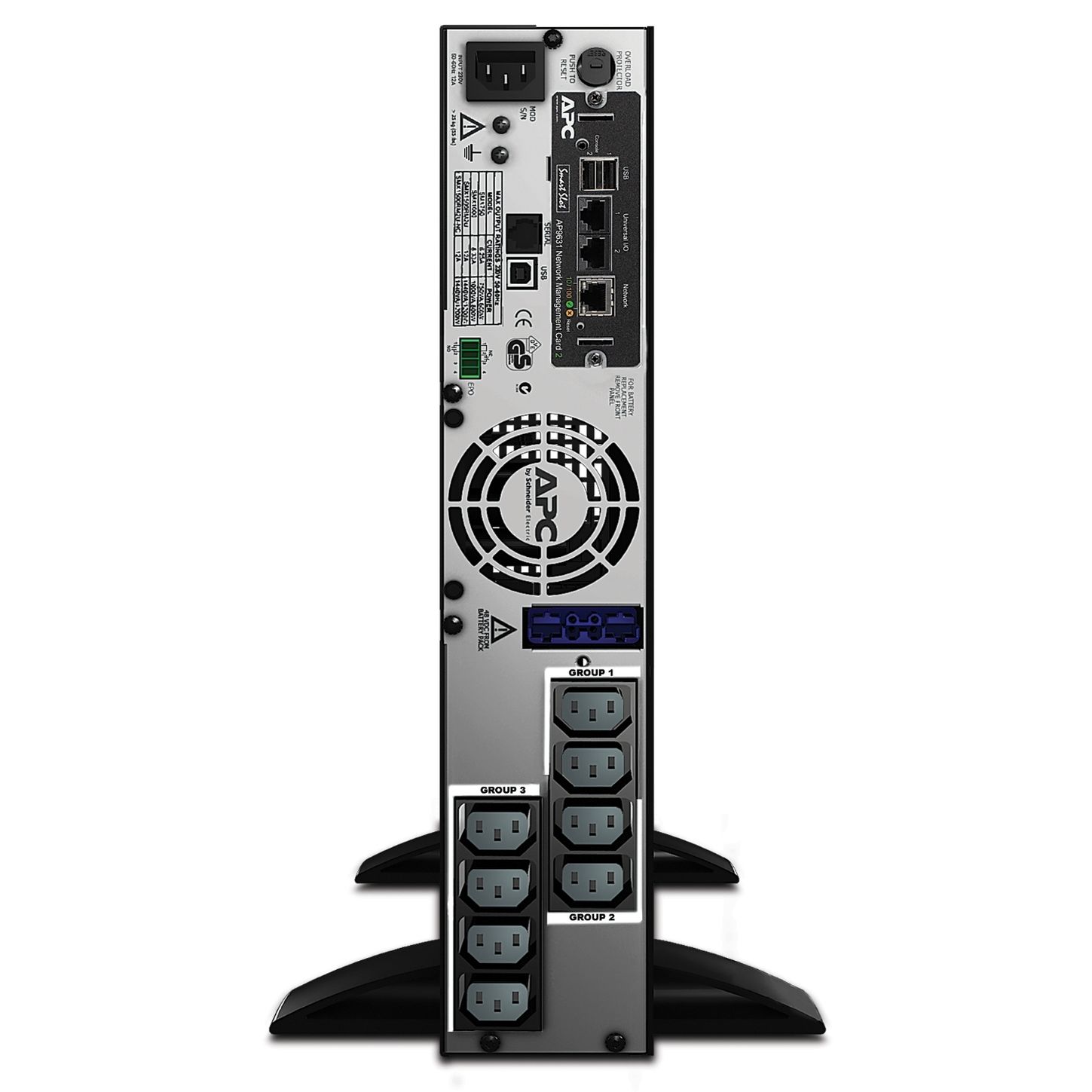

APC Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, Network card, Extended runtime

Product Details

APC Smart-UPS X 1500VA Rack/Tower LCD 230V with Network Card

Attributes

Sena Acoustic Level	40 dBA
Sena Additional Specification	network card pre-installed
Sena Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Sena Ambient Air Temperature For Operation	0-45 °C
Sena Ambient Air Temperature For Storage	-15-45 °C
Sena Battery Charger Power	103 W rated
Sena Battery Curve	C
Sena Battery Life	3-5 year(s)
Sena Battery Option	SMX48RMBP2U 1 933 VAh SMX48RMBP2U 2 1555 VAh SMX48RMBP2U 3 2177 VAh SMX48RMBP2U 4 2800 VAh SMX48RMBP2U 5 3421 VAh
Sena Battery Recharge Time	3 h
Sena Battery Type	lead-acid battery
Sena Control Panel	multifunction LCD status and control console
Sena Curve Equation	efficiency
Sena Curve Fixed Loss	0.0096
Sena Curve Load Maximum	1.0000
Sena Curve Load Minimum	0.0100
Sena Curve Proportional Loss	-0.0001
Sena Curve Square Loss	0.0056
Sena Curve Test Cond Id	Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced PF = 0.8 output.
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Emergency Power Off	yes
Sena Graph Display	1.0000
Sena Harmonic Distortion	less than 5 %
Sena Heat Dissipation	133 Btu/h
Sena Input Voltage	230 V
Sena Input Voltage 1	230 V
Sena Input Voltage Limits	151…302 V adjustable 160…286 V
Sena Maximum Configurable Power In Va	1500 VA
Sena Maximum Configurable Power In W	1200 W
Sena Mounting Mode	rack-mounted
Sena Mounting Preference	lower
Sena Nb Of Power Socket Outlets	2 IEC Jumpers 8 IEC 320 C13
Sena Network Frequency	50/60 Hz ± 3 Hz auto-sensing
Sena Noise Suppression	full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Sena Number Of Battery Replacement Quantity	1.0000
Sena Number Of Cables	1.0000
Sena Number Of Rack Unit	2U
Sena Number Of Tare Power	7 W
Sena Operating Altitude	0…10000 ft
Sena Output Frequency	50/60 Hz ± 3 Hz sync to mains
Sena Output Voltage	230 V
Sena Output Voltage 1	230 V
Sena Performance Multiplier	1.0000
Sena Plug Standard	IEC 320 C14
Sena Preinstalled Device	network management card 2 with environmental monitoring
Sena Product Certifications	C-Tick# #CE# #VDE# #EAC
Sena Provided Equipment	CD with software documentation CD installation guide rack mounting support rails removable support feet Smart UPS signalling RS-232 cable USB cable
Sena Provided Equipment 1	CD with software documentation CD installation guide rack mounting support rails removable support feet Smart UPS signalling RS-232 cable USB cable
Sena Provided Equipment 2	CD with software documentation CD installation guide rack mounting support rails removable support feet Smart UPS signalling RS-232 cable USB cable
Sena Rated Power In Va	1500 VA
Sena Rated Power In W	1200 W
Sena Redundant	No
Sena Relative Humidity	0-95 %
Sena Show Note Op Temperature	No
Sena Standards	EN 50091-1# #EN 50091-2
Sena Storage Altitude	0-50000 ft
Sena Storage Relative Humidity	0-95 %
Sena Surge Energy Rate	645 J
Sena Switching Current Capacity	0.4166666666666667
Sena Ups Size	S
Sena Ups Type	line interactive
Sena Usb Compatible	Yes
Sena Value Multiplier	1.0000
Sena Wave Type	sine wave
