APC SMX1500RM2UC

Name: APC SMX1500RM2UC
Brand: APC
SKU: CS4805357
Availability: OutOfStock

SKU: CS4805357MPN: SMX1500RM2UCUPC/EAN: 731304401131

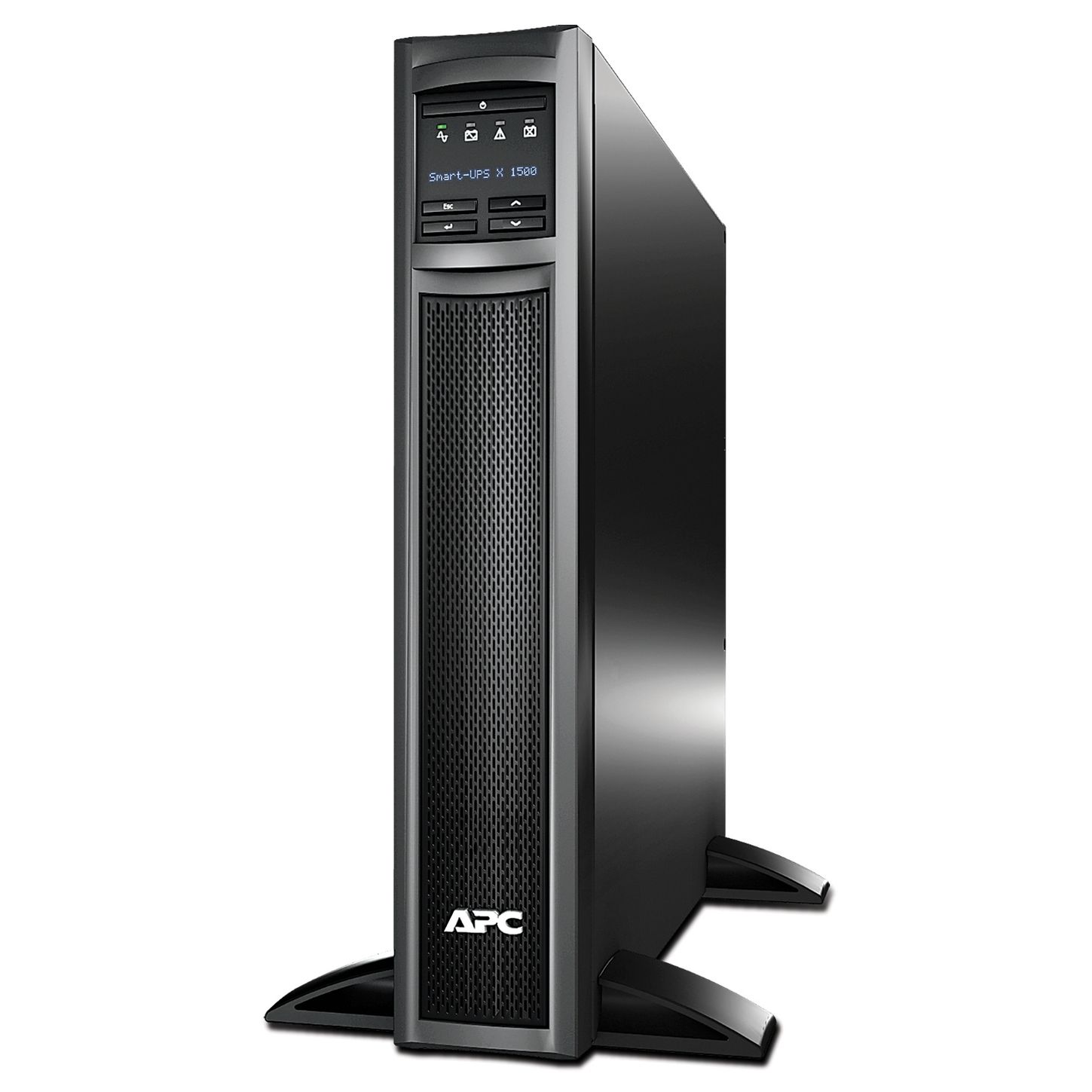

APC Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port, Extended runtime

Product Details

APC Smart-UPS X 1500VA Rack/Tower LCD 120V with SmartConnect

Product or component type : Industrial Control Transformer
Performance multiplier : 1
Number of tare power : 5.6 W
Number of power module free slots : 0
Number of power module filled slots : 0
Redundant : No
UPS size : S
Value multiplier : 1
Cable length : 2.44 m
Number of rack unit : 2U
Colour : Black
Depth : 49 cm
Height : 8.9 cm
Mounting location : Front
Mounting preference : Lower
Net weight : 24.82 kg
Mounting mode : Rack-mounted with kit
Two post mountable : 0
USB compatible : Yes
Width : 43.2 cm

Attributes

Sena Acoustic Level	40 dBA
Sena Additional Specification	extended run
Sena Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Sena Ambient Air Temperature For Operation	0-40 °C
Sena Ambient Air Temperature For Storage	-15-45 °C
Sena Battery Charger Power	103 W rated
Sena Battery Curve	D
Sena Battery Design Life	3-5 year(s)
Sena Battery Design Life 1	3-5 year(s)
Sena Battery Life	3-5 year(s)
Sena Battery Option	SMX48RMBP2U 1 888 VAh SMX48RMBP2U 2 1495 VAh SMX48RMBP2U 3 2100 VAh SMX48RMBP2U 4 2700 VAh SMX48RMBP2U 5 3303 VAh
Sena Battery Recharge Time	3 h
Sena Battery Type	lead-acid battery
Sena Battery Voltage	48 V
Sena Control Panel	multifunction LCD status and control console
Sena Curve Equation	efficiency
Sena Curve Fixed Loss	0.0031999999191612
Sena Curve Load Maximum	1.0000
Sena Curve Load Minimum	0.0099999997764826
Sena Curve Square Loss	0.0094999996945262
Sena Curve Test Cond Id	Curve fit of data measured in accordance with the US DOE Test Procedure for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Emergency Power Off	yes
Sena Equipment Protection Policy	lifetime : $150000
Sena Free Slots	1.0000
Sena Full Load Runtime	0.003
Sena Graph Display	1.0000
Sena Half Load Runtime	0.01
Sena Harmonic Distortion	less than 5 %
Sena Heat Dissipation	133 Btu/h
Sena Input Voltage	120 V
Sena Input Voltage 1	120 V
Sena Input Voltage Limits	75…154 V adjustable 82…143 V
Sena Max Short Time Withstand Current	1000 kA
Sena Maximum Configurable Power In Va	1440 VA
Sena Maximum Configurable Power In W	1350 W
Sena Mounting Location	front
Sena Mounting Mode	rack-mounted with kit
Sena Mounting Preference	lower
Sena Nb Of Power Socket Outlets	8 NEMA 5-15R
Sena Network Frequency	50/60 Hz ± 3 Hz auto-sensing
Sena Noise Suppression	full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Sena Number Of Battery Replacement Quantity	1.0000
Sena Number Of Cables	1.0000
Sena Number Of Rack Unit	2U
Sena Number Of Tare Power	5.6 W
Sena Operating Altitude	0…10000 ft
Sena Output Frequency	50/60 Hz ± 3 Hz sync to mains
Sena Output Voltage	120 V
Sena Output Voltage 1	120 V
Sena Performance Multiplier	1.0000
Sena Plug Standard	NEMA 5-15P
Sena Product Certifications	cUL listed# #ENERGY STAR V2.0 (USA)
Sena Provided Equipment	Cat 5 Ethernet cable installation guide rack mounting hardware rack mounting support rails removable support feet Smart UPS signalling RS-232 cable USB cable
Sena Provided Equipment 1	Cat 5 Ethernet cable installation guide rack mounting hardware rack mounting support rails removable support feet Smart UPS signalling RS-232 cable USB cable
Sena Provided Equipment 2	Cat 5 Ethernet cable installation guide rack mounting hardware rack mounting support rails removable support feet Smart UPS signalling RS-232 cable USB cable
Sena Rated Power In Va	1440 VA
Sena Rated Power In W	1350 W
Sena Redundant	No
Sena Relative Humidity	0-95 %
Sena Show Note Op Temperature	No
Sena Standards	UL 1778
Sena Storage Altitude	0-50000 ft
Sena Storage Relative Humidity	0-95 %
Sena Surge Energy Rate	645 J
Sena Switching Current Capacity	20 A
Sena Ups Design Life	6 year(s)
Sena Ups Size	S
Sena Ups Type	line interactive
Sena Usb Compatible	Yes
Sena Value Multiplier	1.0000
Sena Wave Type	sine wave
