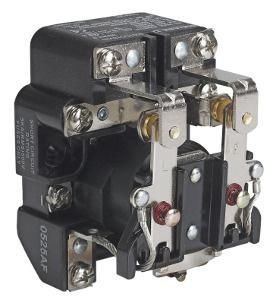

Square D 8501CO16V04

Name: Square D 8501CO16V04
Brand: Square D
SKU: CS4756294
Price: 47.11 USD
Availability: OutOfStock

SKU: CS4756294MPN: 8501CO16V04UPC/EAN: 785901052166

Power Relay, Type C, 2 hp, 30A resistive at 300VAC, DPDT, 2 normally open and 2 normally closed contact, 277VAC coil

$47.11

Unit

Available on backorder

Quantity

remove

add

Product Details

Power Relay:

DPDT
Voltage Code: V04 \= 277 AC Voltage - 50/60 Hz
Fixed Contacts: 2 N.O., 2 N.C.
AC Operated Open Type
Max Contact Voltage: 600
Resistive Ampere Rating 75% Power Factor: 40 @ 277 Vac and 5 @ 600 V
Maximum Single Phase Horsepower: 2 @ 120 V, 2 @ 220 V and 2 @ 600 V
Maximum Coil Power Consumption: 10 VA - AC Coil and 4 W - DC Coil
For controlling single-phase motors, electric heaters, pumps, conveyors, material handling equipment and other applications.
Features: 40 A Contact Rating, Motor load (hp) ratings, Durable open-frame construction, UL Listed, CSA Certified, CE Approved and RoHS Compliant.

In Rated Current	30 A
In Rated Current 1	30 A
Ambient Air Temperature For Operation	-22-122 °F
Ambient Air Temperature For Operation 1	-22-122 °F
Catalog Class	8501.0000
Connections Terminals	screw clamp terminal
Contacts Type And Composition	2 NO/2 NC
Device Application	suited for controlling small single phase motors and other light loads
Device Short Name	type C
Hold In Power Consumption In Va	10-10 VA
Mounting Support	panel mounting
Network Number Of Phases	1 phase
Product Certifications	UL listed file E78351 CCN NLDX# #CSA# #CE
Product Or Component Type	power relay
Range Of Product	Power Relay 8501C
Rated Power In Hp	2.0 hp
Switch Function	DPDT
Tightening Torque	11-15 lbf.in
Tightening Torque 1	11-15 lbf.in
