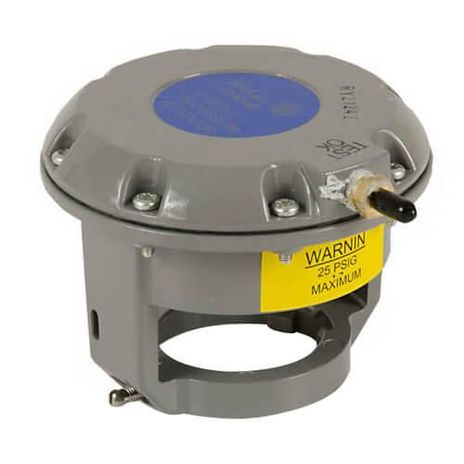

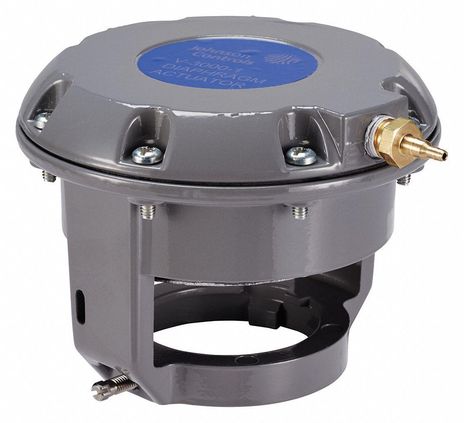

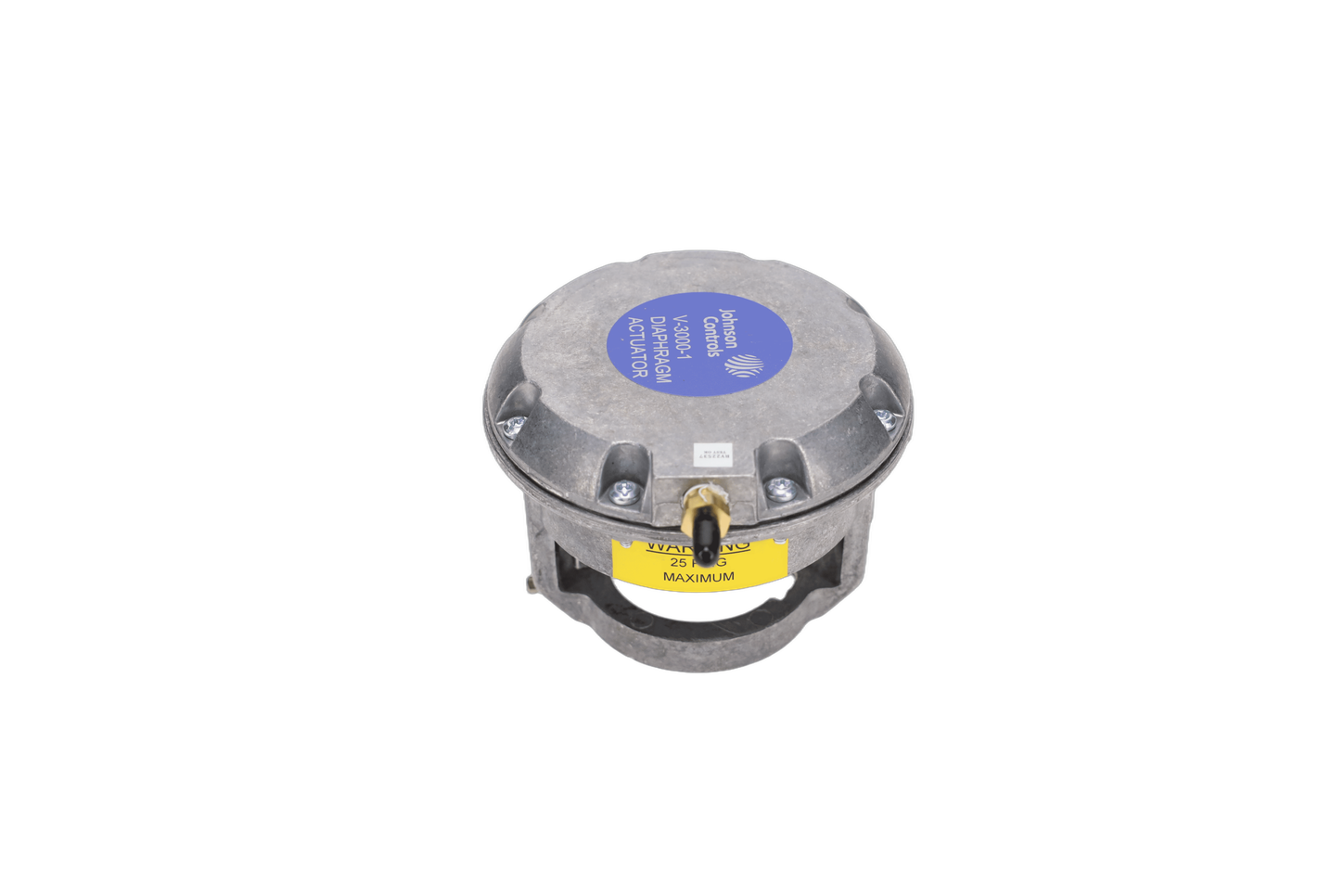

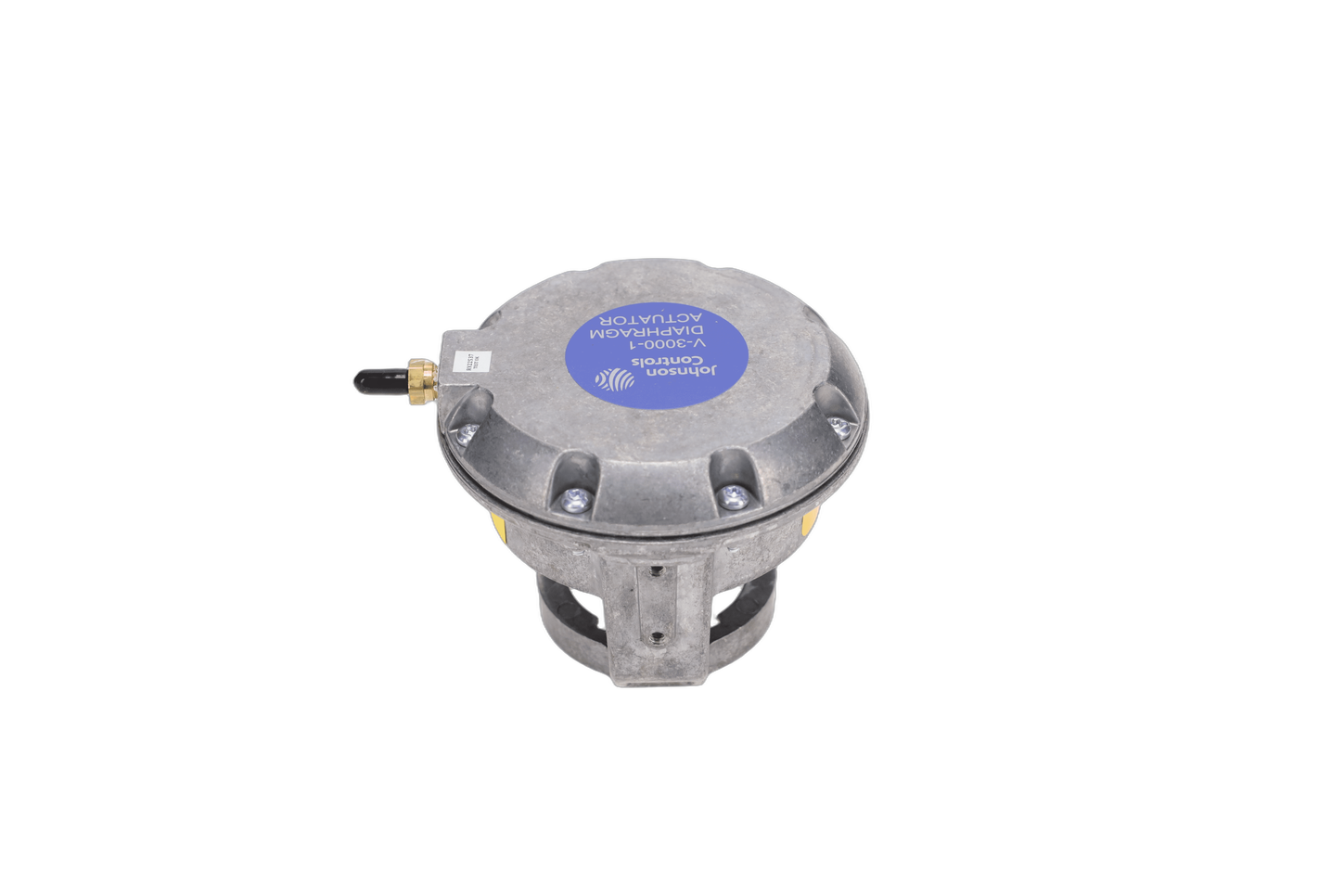

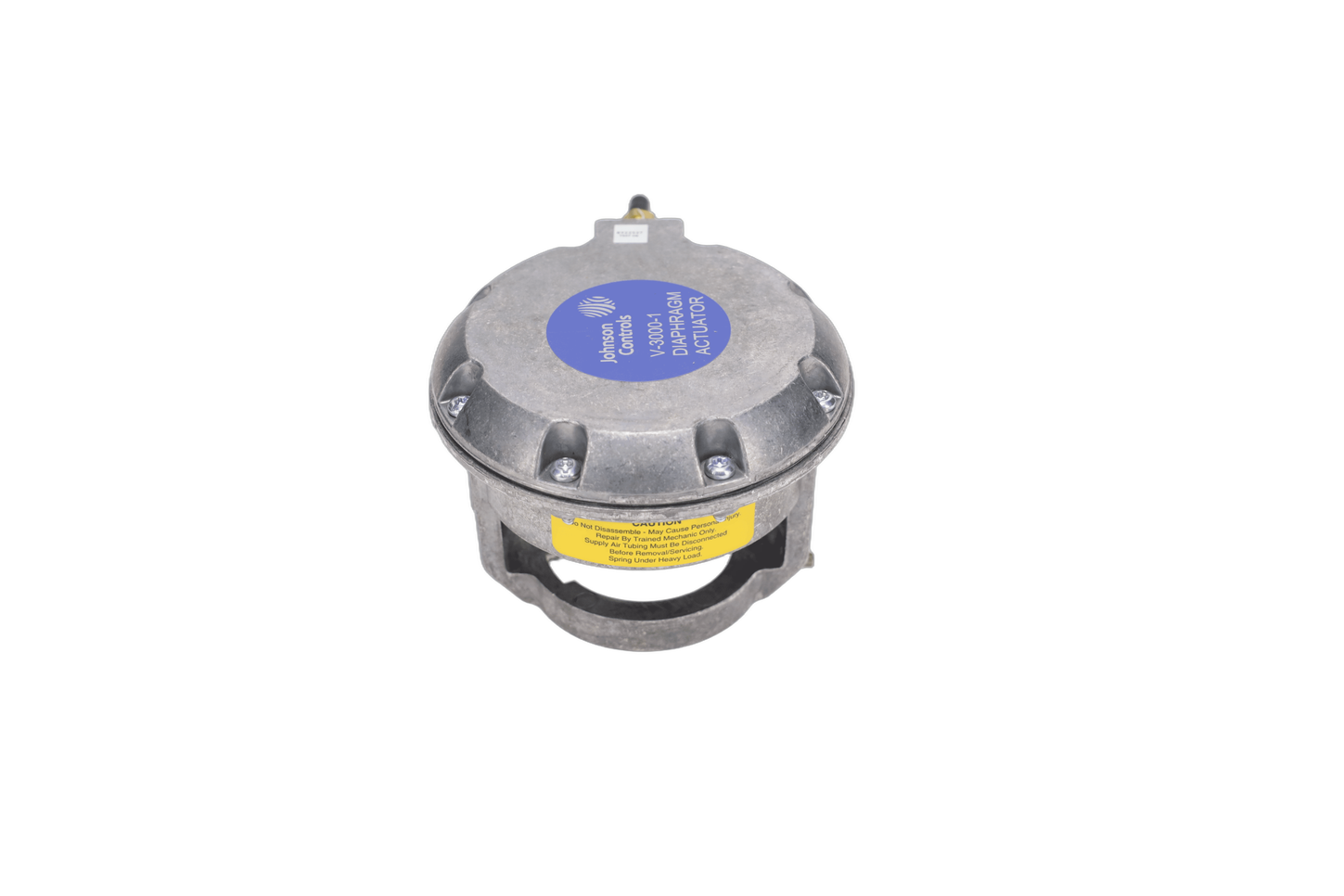

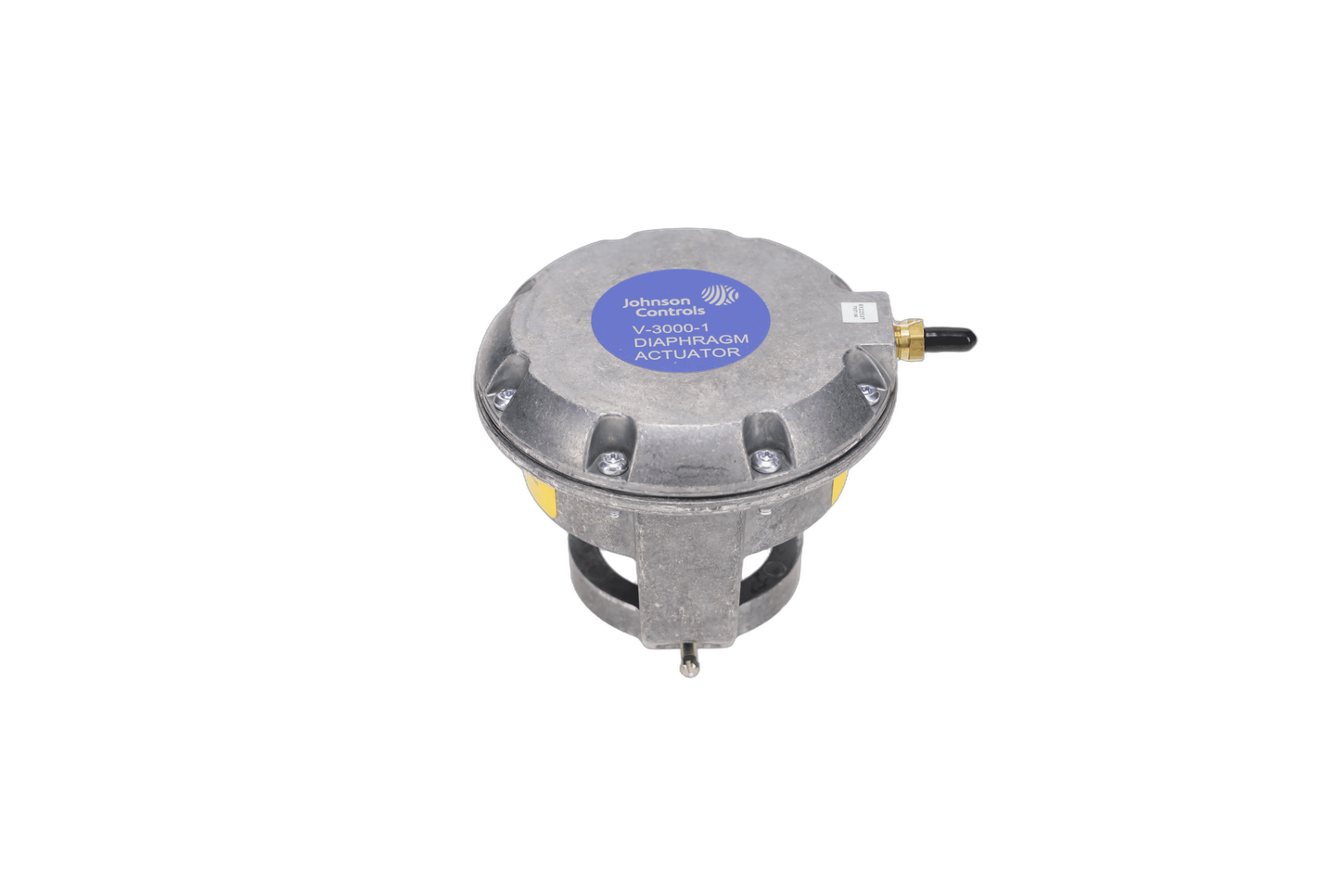

Johnson Controls V-3000-1

PNEU VLV ACTUATOR; EXPOSED YOKE

The V-3000 Series Pneumatic Valve Actuators are designed to accurately position steam or water valve modulating plugs in response to a pneumatic signal from a controller. Two models of the V-3000 are available; the exposed model is for installation in a protected location and the enclosed model is for installation in a location where the actuator would be subjected to tampering. A V-9502 Valve Positioner can be ordered separately for use on the exposed model only in applications where sequential operation is desired or additional positioning power is necessary; refer to the Specifications Table for ordering information.

Specifications

• Model: Exposed
• Max Control Pressure: 30 psig
• Air Connection: ⅛”NPT barb fitting for 5/32” O.D polytubing
• Ambient Operating Temperature Limits: -20 to 150F (-29 to 66C)
• Max Storage Temperature: 150F
