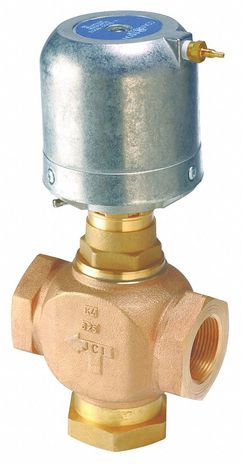

Johnson Controls V-3000-8003

PNEU VLV ACTUATOR; ENCLOSED YOKE MED DUTY

The V-3000-8012 and V-3000-8003 Pneumatic Valve Actuators are designed to accurately position steam or water valve modulating plugs in response to a pneumatic signal from a controller. A V-9502 Valve Positioner can be ordered separately for use with the V-3000-8012 only, in applications where sequential operation is desired or additional positioning power is necessary. The actuators have a molded synthetic rubber diaphragm design. This molded diaphragm provides a constant effective area throughout the actuator stroke. All parts are protected by a sturdy die-cast aluminum housing.

Features:

• universal valve mounting design is compatible for use on all Johnson Controls® valves with V-3000 mounting configurations
• rolling diaphragm design provides constant effective diaphragm area throughout stroke for optimal force output
• integral stroke position indicator provides visual reference to valve position
