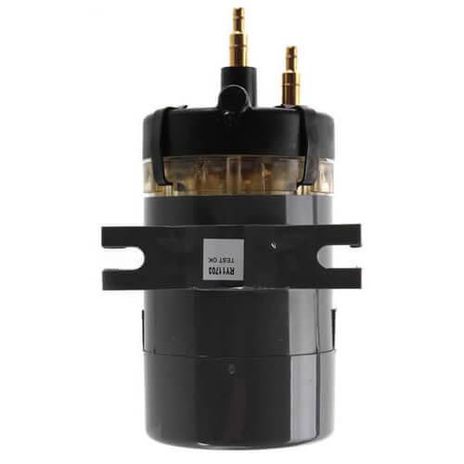

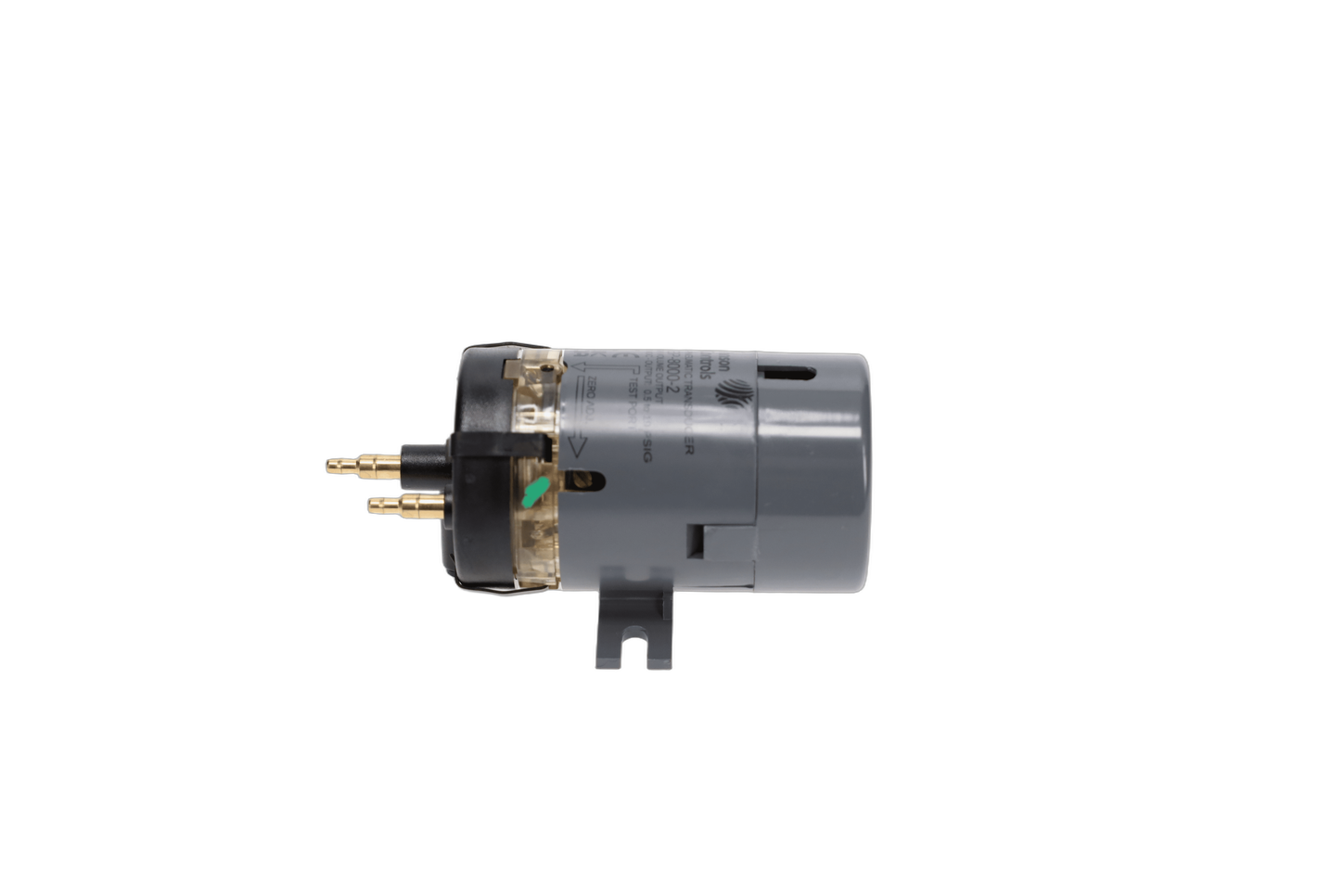

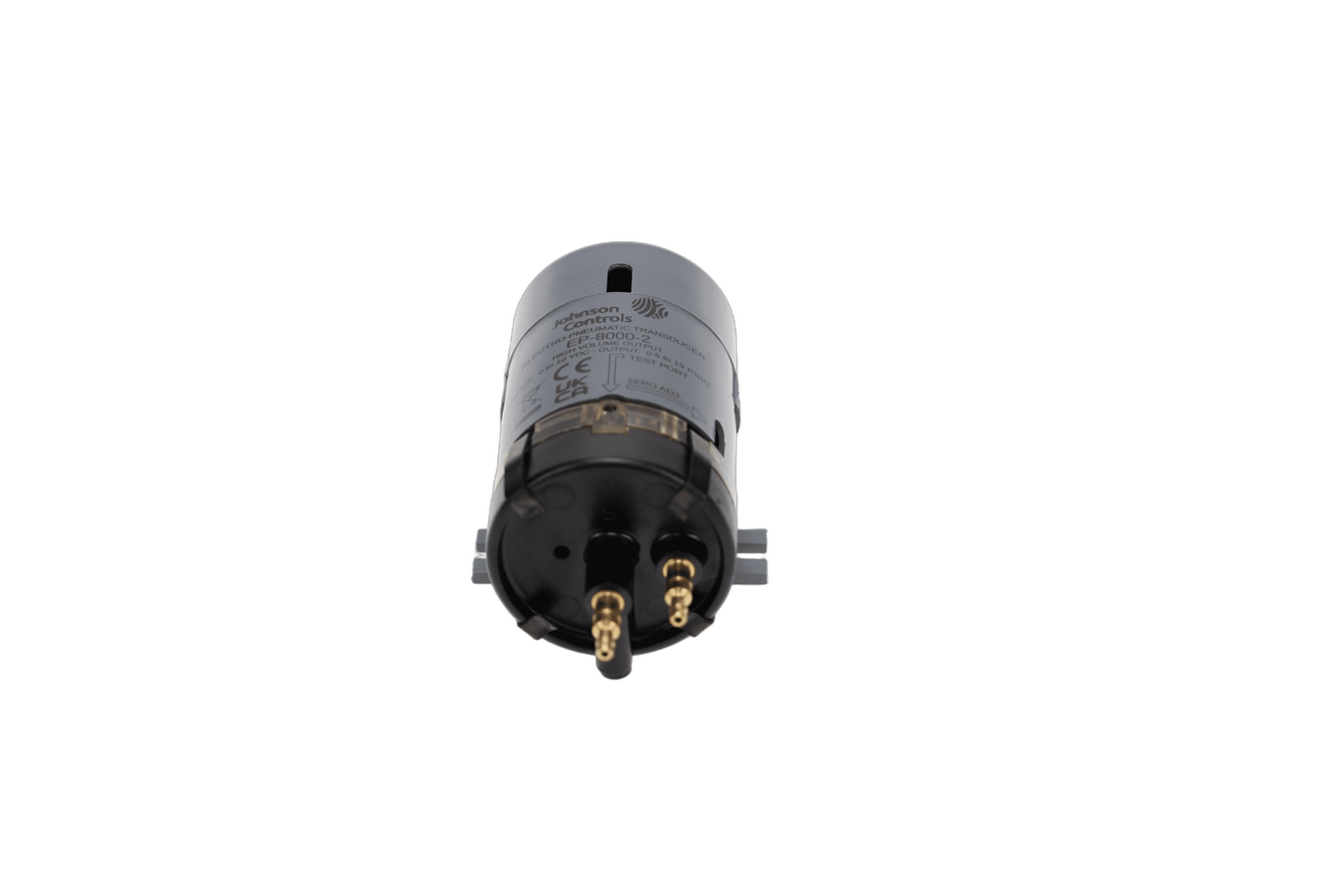

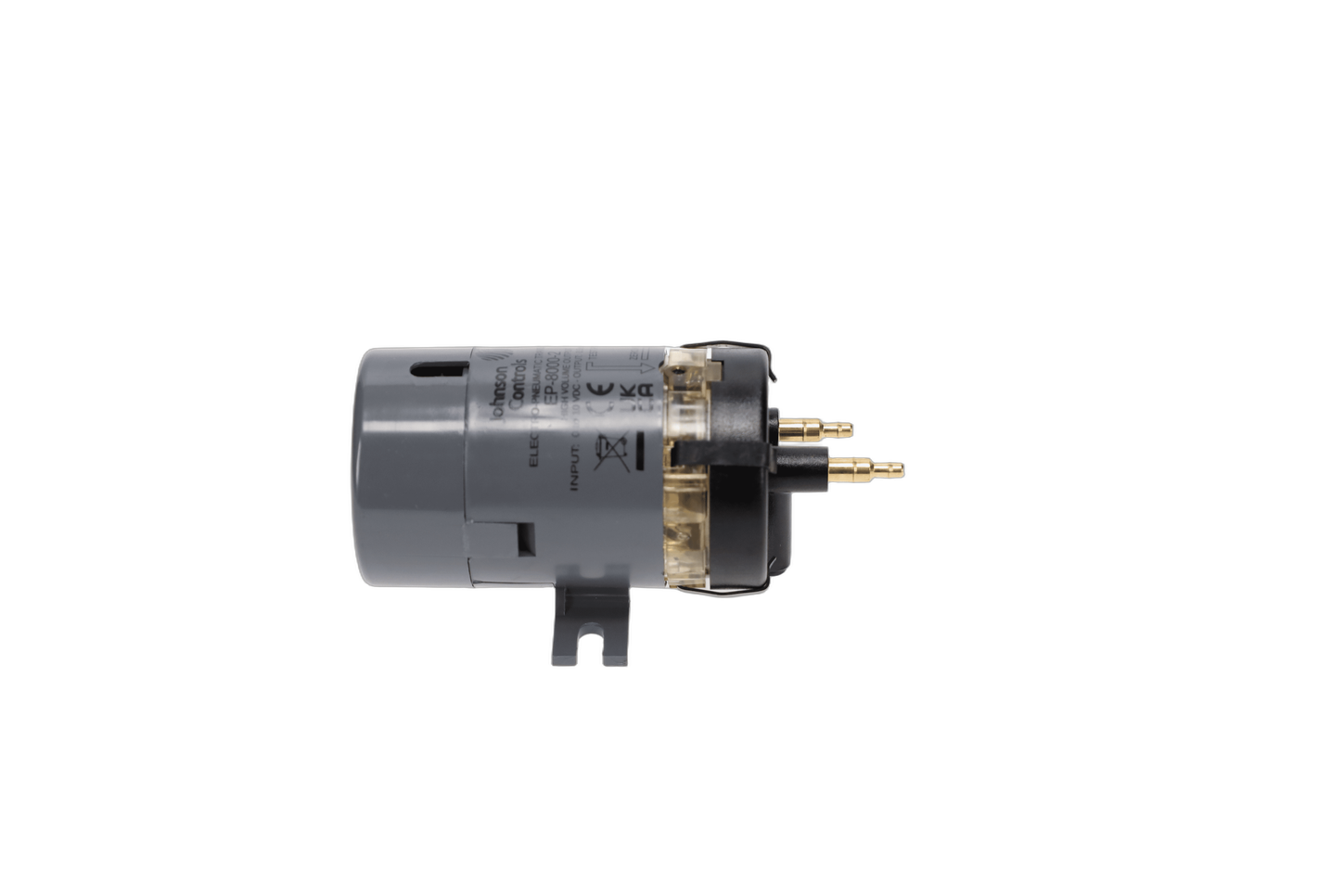

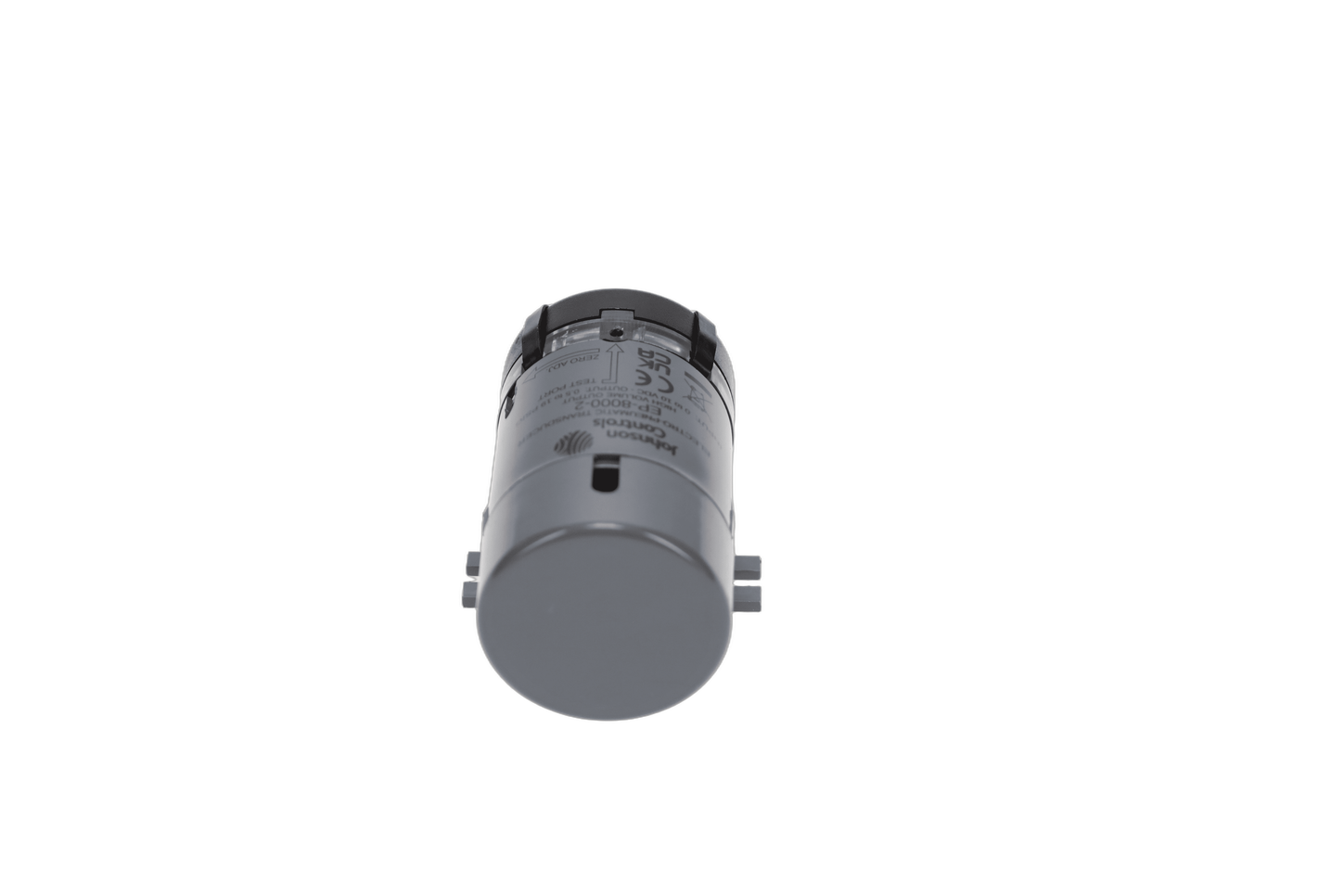

Johnson Controls EP-8000-2

EP TRANSDUCER; 0/10V HI; HI-VOL

EP-8000 Series Electro-Pneumatic Transducers convert a voltage or current signal from an electronic controller into a pneumatic output pressure signal. An increase or decrease in the input signal proportionally increases or decreases (respectively) the output pressure signal from the EP-8000. Four models are available, which are grouped into two basic versions: low-volume output units (non-relay) and high-volume output units (relay).

The EP-8000 is designed to output a proportional pneumatic control signal in response to an electronic control signal. All units feature barbed air connections for 5/32 or ¼ inch O.D. polytubing. Sequencing of pneumatic valve or damper actuators can be accomplished using a Johnson Controls V-9502 (Valve) or D-9502 (Damper) Actuator Positioner.

Features:

Eases installation on a variety of mounting surfaces, including direct mounting on pneumatic valve actuators * Interfaces with a wide range of controllers, making the unit ideal for retrofit installations * Allows for fast and easy output pressure signal measurement * Facilitates field calibration, saving installation costs * Provides many years of use with less time spent on maintenance
