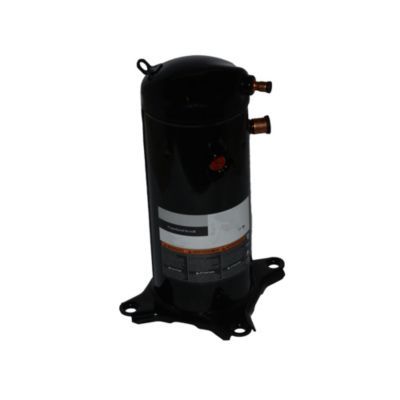

Carrier ZP34K6E TFD 830

Name: Carrier ZP34K6E TFD 830
Brand: Carrier
SKU: CS4231040
Availability: OutOfStock

SKU: CS4231040MPN: ZP34K6E TFD 830Alternate Part #: CAR-ZP34K6E-TFD-830

Factory Authorized Parts™ - ZP34K6E-TFD-830 - Compressor Scroll

Product Details

Factory Authorized Parts™ - ZP34K6E-TFD-830 - Compressor Scroll

Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time, up to 4-6 weeks. By purchasing this product, you agree to these terms.

Attributes

Amps	3.5
Phase	Three
Voltage	380-420/460 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	34,600
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-410A
Displacement	2.00 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	71
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	510 lbs./hr.; 579 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	5.6
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C), 70°F (21.11°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	50F
Locked Rotor Amps (LRA)	44
Oil Charge Initial (oz.)	42 oz.
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
