Carrier ZP31K6E TF5 830

Name: Carrier ZP31K6E TF5 830
Brand: Carrier
SKU: CS4231036
Availability: OutOfStock

SKU: CS4231036MPN: ZP31K6E TF5 830Alternate Part #: CAR-ZP31K6E-TF5-830UPC/EAN: 822529857732

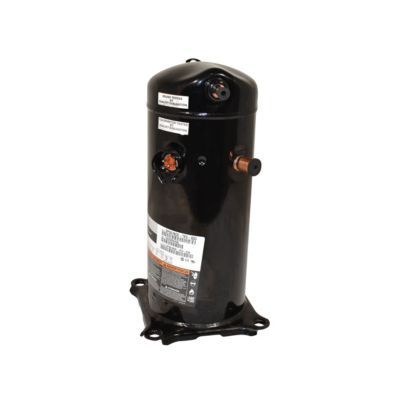

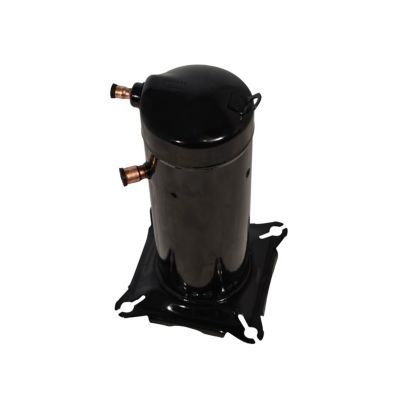

Factory Authorized Parts™ - ZP31K6E-TF5-830 Compressor

Product Details

Factory Authorized Parts™ - ZP31K6E-TF5-830 Compressor

Amps	6.6
Phase	Three
Voltage	200-220/200-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	25,300
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-410A
Displacement	1.79 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	71
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	459 lbs./hr.; 524 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 16.02”
Rated Load Amps (RLA)	10.4
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C);70°F
Suction Line Size (OD)	¾”
Evaporating Temperature	45°F (7.22°C); 50°F
Locked Rotor Amps (LRA)	73
Oil Charge Initial (oz.)	25
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
