Turck BTS-DSU35-Z02

6900230 - MOUNTING

Accessories

Mounting Kit

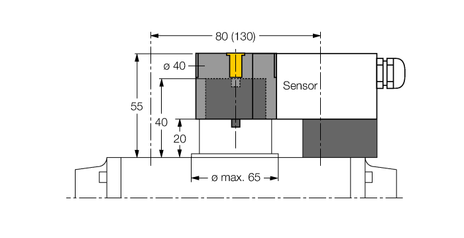

Mounting kit for larger rotary actuators:

Spacer plate and snap ring Ø: max. 65 mm

Hole pattern on flange surface: 30 × 80 mm (30 × 130 mm)

Connection shaft (shaft peg) height 20 mm / Ø max. 40 mm

Included in delivery:

1 spacer plate Ø 20 mm (POM)

1 spacer ring Ø 20 mm (PP-GF30)

Mounting the spacer plate:

2 cylinder screws M5 × 35 [DIN 912‐A2]

2 spring washers A5 [DIN 137‐A2]

Mounting the puck with spacer ring:

1 countersunk screw M6 × 45 [DIN 7991‐A2]

The spacer ring has a 4 × 4 mm cross-shaped notch allowing the actuator to be mounted offset by 90°, suited for cross-wise mounted drives.
