Turck BTS-DSU35-Z06

6900402 - MOUNTING

Accessories

Mounting Kit

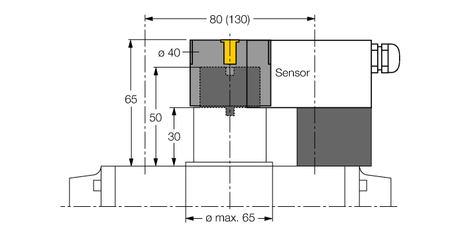

Mounting kit for larger rotary actuators:

Ø spacer plate and snap ring: max. 65 mm

Hole pattern on flange surface: 30 x 80 mm (30 x 130 mm)

Connection shaft (shaft extension) height: 30 mm/Ø: max. 40 mm

Included in delivery:

1 spacer plate Ø 30 mm (POM)

1 spacer ring Ø 20 mm (PP-GF30)

Mounting the spacer plate:

2 cylinder screws M5 × 45 [DIN 912-A2]

2 lock washers A5 [DIN 137‐A2]

Mounting the puck with spacer ring:

1 countersunk screw M6 × 45 [DIN 7991-A2]

The spacer ring has a 4 x 4 mm cross-shaped notch allowing the actuator to be mounted offset by 90°, suited for crosswise-mounted drives.
