Turck BTS-DSU35-Z07

6900403 - MOUNTING

Accessories

Mounting Kit

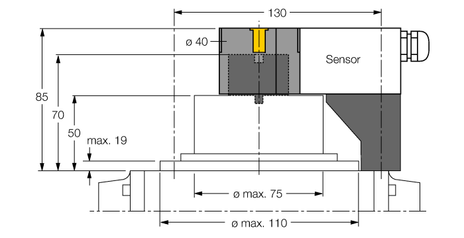

Mounting kit for larger rotary actuators:

Ø spacer plate and snap ring: max. 110 mm

Hole pattern on flange surface: 30 x 130 mm

Connection shaft (shaft extension) height: 50 mm/Ø: max. 75 mm

Included in delivery:

1 spacer plate 50 mm (POM)

1 spacer ring Ø 20 mm (PP-GF30)

Mounting the spacer plate:

2 cylinder screws M5 x 12 [DIN 912‐A2]

2 cylinder screws M5 × 65 [DIN 912-A2]

4 lock washers A5 [DIN 137-A2]

Mounting the puck with spacer ring:

1 countersunk screw M6 × 45 [DIN 7991-A2]

The spacer ring has a 4 x 4 mm cross-shaped notch allowing the actuator to be mounted offset by 90°, suited for crosswise-mounted drives.
