Turck BTS-DSU35-Z01

6900229 - MOUNTING

Accessories

Mounting Kit

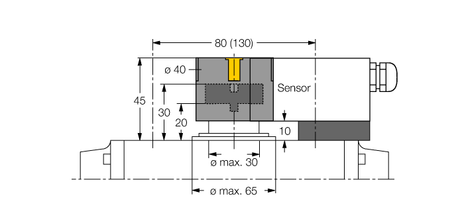

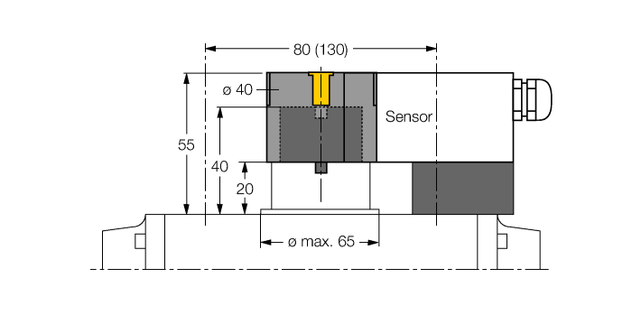

Mounting kit for larger rotary actuators:

Ø spacer plate and snap ring: max. 65 mm

Hole pattern on flange surface: 30 x 80 mm (30 x 130 mm)

Connection shaft (shaft extension) height: 20 mm/Ø: max. 30 mm

Included in delivery:

1 spacer plate 10 mm

1 spacer ring 10 mm

Mounting the spacer plate:

2 cylinder screws M5 × 22 [DIN 912‐A2]

2 lock washers A5 [DIN 137‐A2]

Mounting the puck with spacer ring:

1 countersunk screw M6 × 36 [DIN 7991-A2])
