Turck NI25U-CK40-ADZ30X2-B3131
SKU: CS905044MPN: NI25U-CK40-ADZ30X2-B3131Alternate Part #: 4280230UPC/EAN: 4047101094060
4280230 - UPROX, RECT., AC, CON. ½IN.
$247.69
UnitAvailable on backorder
Product Details
Inductive Sensor
- Rectangular, height 40 mm
- Variable orientation of active face in 5 directions
- Plastic, PBT‐GF30‐V0
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- AC 2-wire, 20…250 VAC
- DC 2-wire, 10…300 VDC
- NO contact
- ½” male connector
Attributes
| Ambient Temperature | -30…+85 °C |

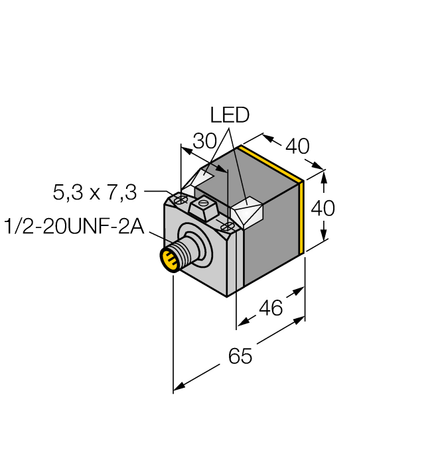

| Construction Size | 65 x 40 x 40 mm, CK40 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, ½″ |
| Housing Material | Plastic, PBT-GF20-V0, Black |
| Mounting | Non-flush |
| Operating Voltage | 20…250 VAC / 10…300 VDC |
| Output Function | NO contact, 2-wire |
| Protection Class | IP68 |
| Rated Switching Distance | 25 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.010 kHz |
Specifications
| SKU | CS905044 |
|---|---|
| MPN | NI25U-CK40-ADZ30X2-B3131 |
| Alternate Part # | 4280230 |
| UPC/EAN | 4047101094060 |
