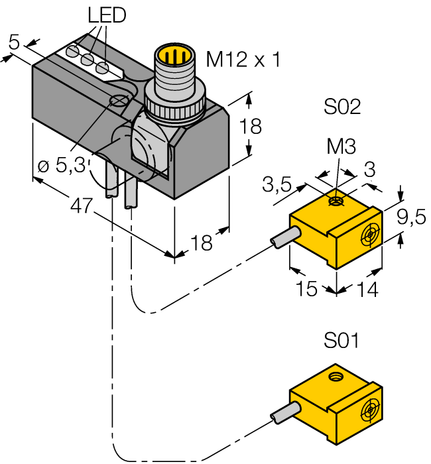

Turck NI2-Q9.5-0.1-BDS-2AP6X3-H1141/S34
SKU: CS4209521MPN: NI2-Q9.5-0.1-BDS-2AP6X3-H1141/S34Alternate Part #: 1650099UPC/EAN: 4047101082043
1650099 - FERRITE, CLAMP, DC, CON. M12
$269.81
UnitAvailable on backorder
Product Details
Inductive Sensor
Monitoring Kit for Power Clamps
- Rectangular, height 18 mm
- Plastic, Trogamid
- Relocatable connector
- Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT
- 2 x NO contact, PNP output
- DC 4-wire, 10…30 VDC
Attributes
| Ambient Temperature | -25…+70 °C |
| Customs Tariff Number | 85365019900.0000 |
| Design | Monitoring kit for power clamps |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, Trogamit |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 2 mm |
| Special Feature | Resistant to magnetic fields |
| Switching Frequency | 0.030 kHz |
Specifications
| SKU | CS4209521 |
|---|---|
| MPN | NI2-Q9.5-0.1-BDS-2AP6X3-H1141/S34 |
| Alternate Part # | 1650099 |
| UPC/EAN | 4047101082043 |
You may also like
Turck NI2-ISI-0.1-BDS-2AP6X3-H1141/S34
$269.81Unit

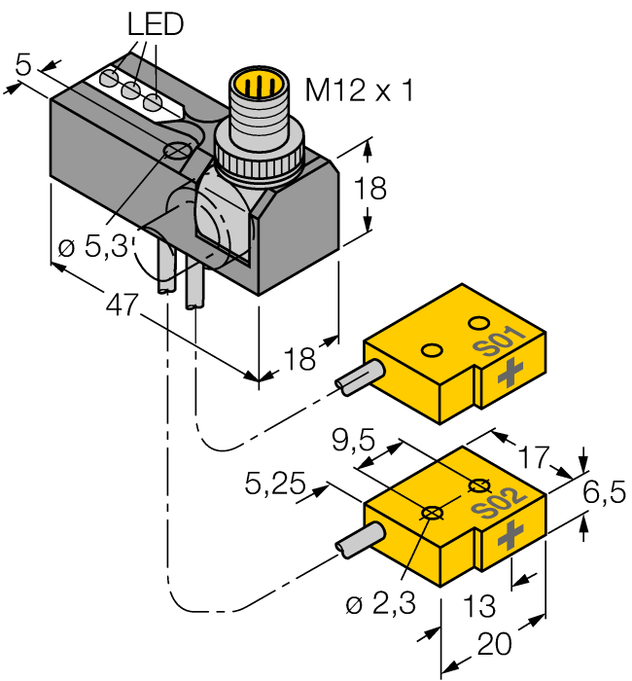

Turck NI2-Q6.5-0.1-BDS-2AP6X3-H1141/S34
$269.81Unit

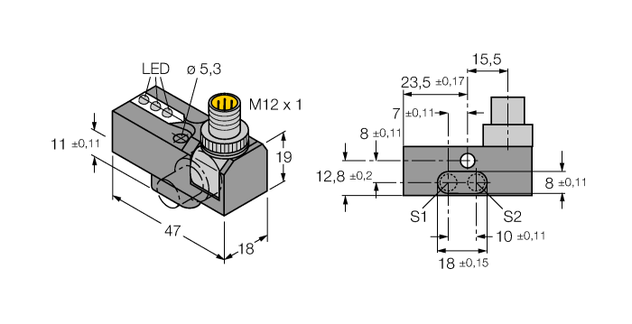

Turck NI2-GEN-BDS-2AP6X3-H1141/S34
Contact us for pricing and availabilityTurck NI2-ISI-0.055-BDS-2AP6X3-H1141/S34
$269.81UnitTurck NI2-Q6.5-0.16-BDS-2AP6X3-H1141/S34
$269.81Unit

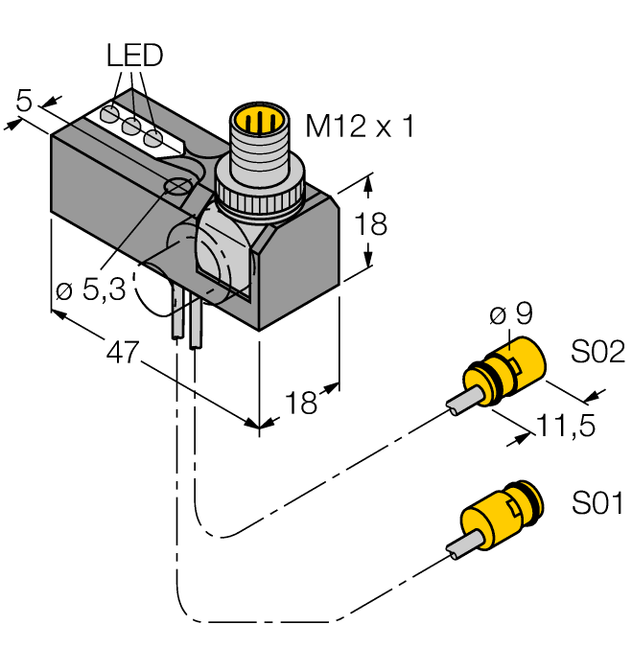

Turck NI2-K09-0.095/0.11-BDS-2AP6X3-H1141 / S34
Contact us for pricing and availability

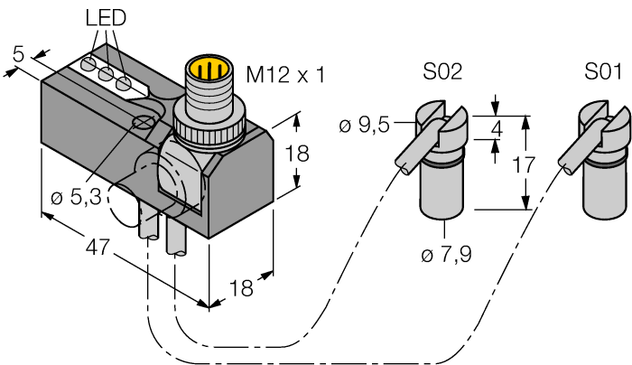

Turck NI2-BTM-0.16-BDS-2AP6X3-H1141/S34
$269.40Unit
Turck BI2-Q5.5-0.05-BDS-2AP6X3-H1141/S34
$273.75Unit

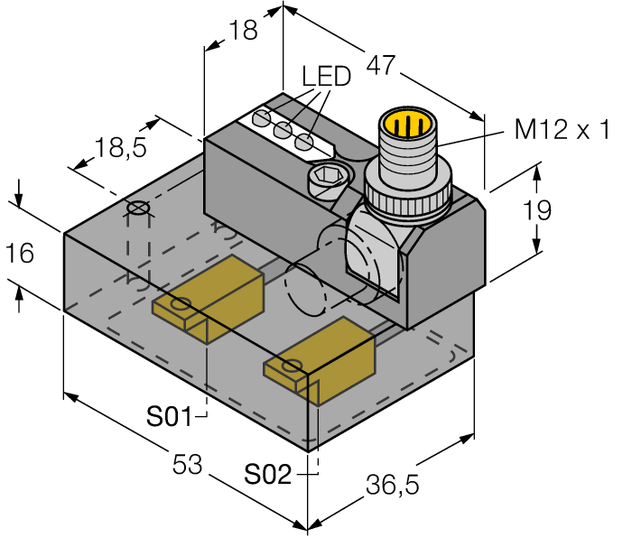

Turck NI2-ISI-0.055-BDS-2AP6X3-H1141/S34W I SI1
Contact us for pricing and availability

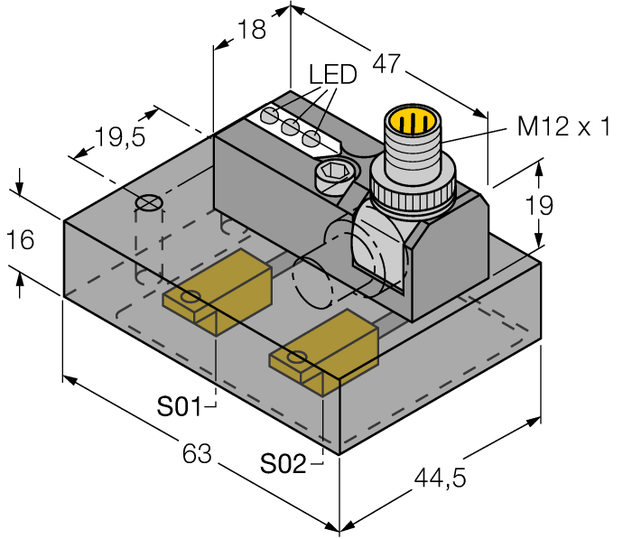

Turck NI2-ISI-0.055-BDS-2AP6X3-H1141/S34W I SI2
Contact us for pricing and availability
Turck NI2-Q9.5-AP6-0.1-FS4.4X3/S304
$257.53Unit

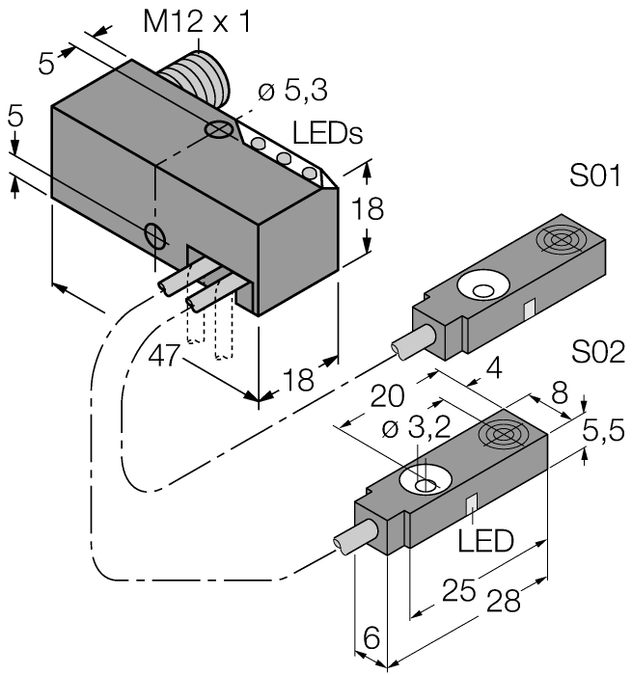

Turck BI2-Q5.5-0.27-BS-2AP6X3-H1141/S34
